Главная Каталог товаров KTM EPC 2016 KTM Offroad KTM 2016 Cross Country KTM 2016 Offroad 350 XC-F (F8275P0) [US] KTM FRAME

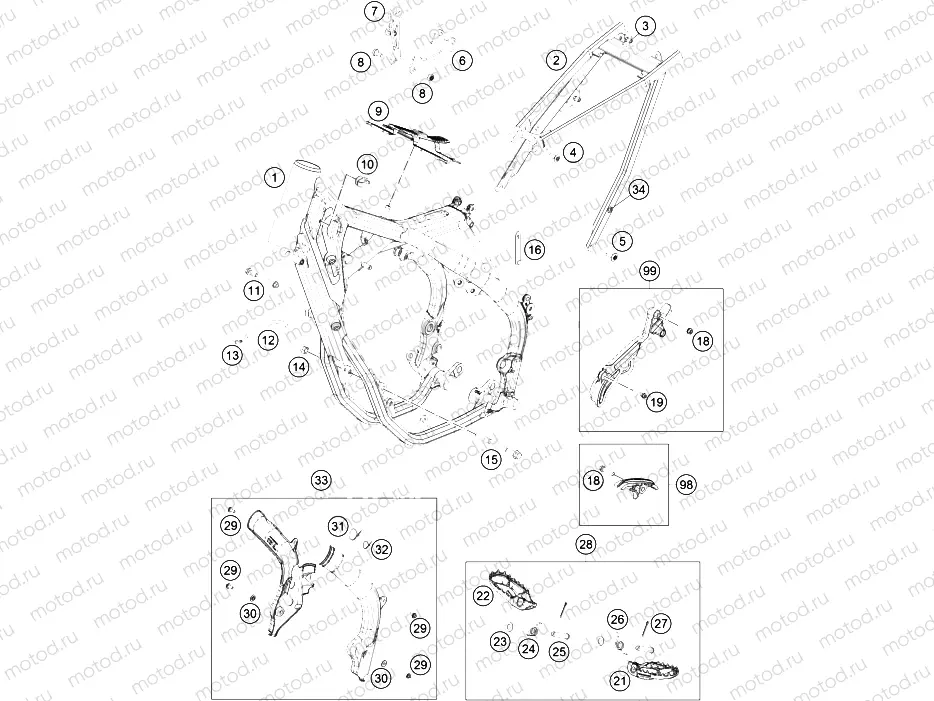

FRAME

FRAME
Например: 7900300110033
1
7900300110033
FRAME "790P2" BLACK
2
79003002000
SUBFRAME 2016
3
77303139000
BLIND RIVET NUT EM6-60LF/HX
4
0019080206S
Vis (Flat M8x20)
5
79003003000
Vis (spec)
6
79003013000
ENGINE BRACE L/S
7
79003014044
REINFORCING RIGHT CPL.
8
0035080156S
AH-COLLAR SCREW M8X15 TORX45
9
79007012000
TANK REST RUBBER
10
58111076000
CABLE SUPPORT KHS NR.150-47610
11
0025080166S
Vis
12
55007016001
PVC-HOSE 7X10 PER METER
13
50303089000
ANGLE PIECE '97
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
77203014000
engine brac.scr. M10x115
16
60011093075
RUBBER CABLE TIE 75MM 03
18
0025080306
Vis
19
0025060306
Vis
21
79003040000
FOOTREST L/S 2016
22
79003041000
FOOTREST R/S 2016
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003040033
FOOT PEGS SET CPL. 2016
29
0014050123
Vis
30
54803092060
BUSH F. FRAME PROTECTION 03
31
44011076305
CABLE TIE 300/4,8MM BLACK
32
44011076140
CABLE TIE 140/2,5MM BLACK
33
7900309400033
Frame Protection Set Black
3 492 ₽/шт
34
79003002080
BLIND RIVET NUT M6 KNURLED
98
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79003096010
SPROCKET COVER KIT
