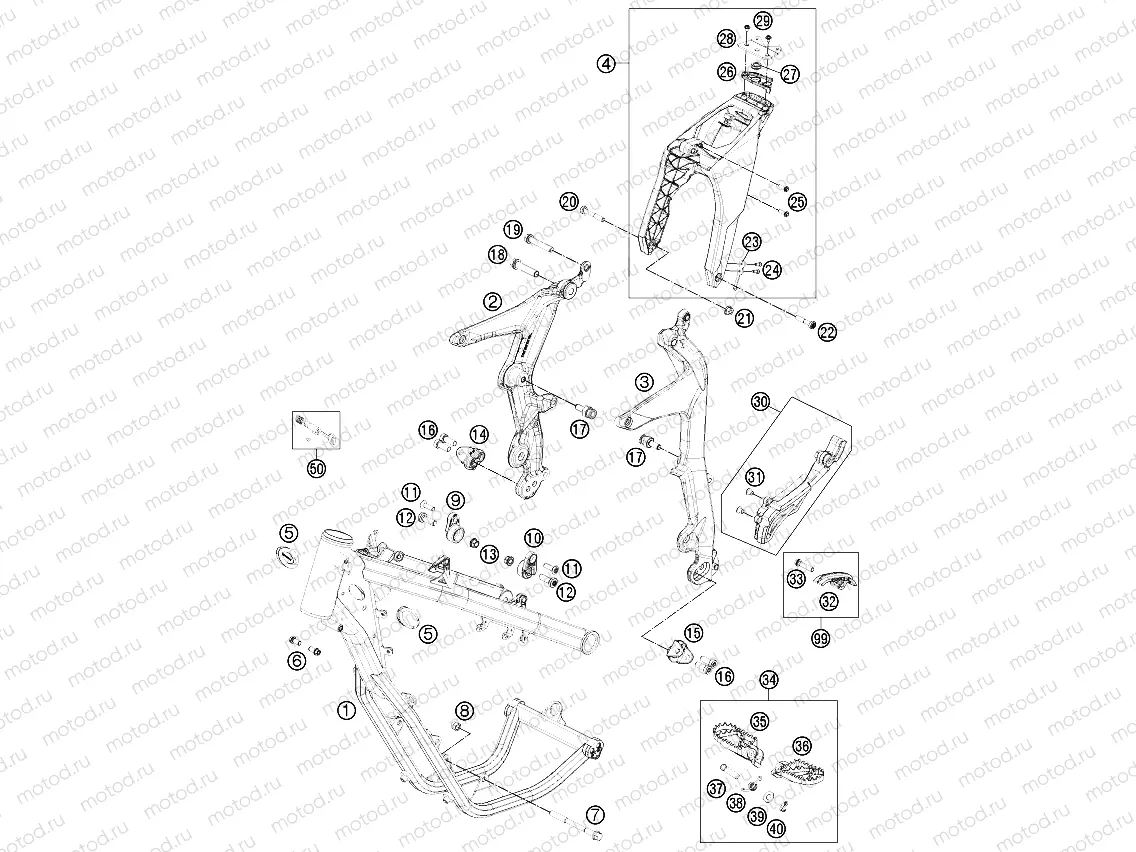

FRAME

FRAME
Например: 7200300100004
1
7200300100004
FRAME ORANGE ''720L1''
2
72103001152
Connection support right
3
72103101051
Linkage bracket, left premount.
4
70003002033
SUBFRAME CPL.
5
58404041000
CLOSING COVER SWINGARM SM 03
6
0025080166S
Vis
7
77203014000
engine brac.scr. M10x115
8
54310086100
SELF LOCKING NUT M10 CU WS=14
9
72007015000
FUEL TANK CARRIER R/S
10
72007014000
FUEL TANK CARRIER L/S
11
0019080206S
Vis (Flat M8x20)
12
0035100309S
HCS M10x30 TX45
13
55530044000
Nut
14
70003039100
FOOTREST MOUNTING R/S '12
15
70003038100
FOOTREST MOUNTING L/S '12
16
0032100256S
AH-COLLAR SCREW M10X25 ISA45
17
72003001059
Vis (spec)
18
70004016000
MONOSHOCK SCREW TOP M12X80
19
69004094000
Vis
20
0035080506S
AH-COLLAR SCREW M8X50 ISA45
21
54310086200
Nut (M8x10,9)
22
0035080406
AH-COLLAR SCREW M8X40 ISA45
23
70003024050
SIDE STAND SPRING PLATE 12
24
0017060205
Vis
25
0016070253
PLASTIC SCREW K7X25 PT1447
26
70007039000
SEAT LOCKING MECHANISM
27
70007039060
BUSHING QUICK LOCK
28
70007039050
BRACKET QUICK LOCK
29
0024060106
Vis
30
72003096000
SPROCKET COVER
31
45239060050
COLLAR BUSHING 6,3X8X13X9,5
32
70003053000
CHAIN SLIDING PIECE BELOW CPL.
33
0025080356
Vis
34
78003040033
FOOTREST L/S + R/S CPL. 09
35
78003041050
FOOTREST R/S 08
36
78003040050
FOOTREST L/S 08
37
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
38
54603041000
FOOTREST SPRING L/S & R/S
39
0125100003
washer DIN 125 A 10.5
40
0094032253
PIN DIN0094-3,2X25 STEEL
50
78003035100
Steering lock
99
70003053010
CHAIN SLIDING KIT BELOW
