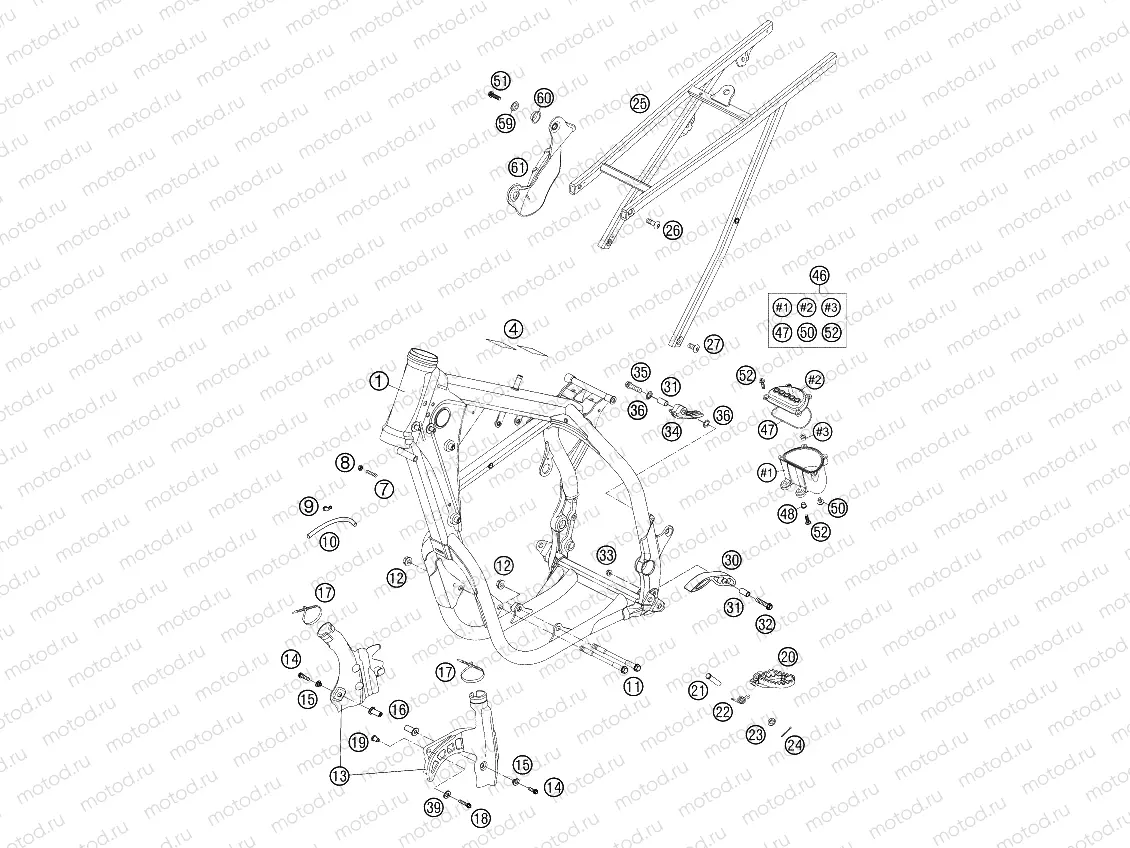

FRAME

FRAME
1
5940300140096
Frame 450/525 smr
4
50307012000
ADH. FOIL TRANSP. 80X80 MM 04
7
59001037000
Vis (spec)
8
0934080003
Nut
9
50303089000
ANGLE PIECE '97
10
55007016001
PVC-HOSE 7X10 PER METER
11
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
12
54310086100
SELF LOCKING NUT M10 CU WS=14
13
54803094000
FRAME PROTECTION SET 03
14
0014050253
Vis
15
54803092060
BUSH F. FRAME PROTECTION 03
16
54803092050
BLIND PLUG-IN NUT M5 WN 22A 03
17
44011076305
CABLE TIE 300/4,8MM BLACK
18
0025060356
Vis
19
59030060050
BUSHING F. SPROCKET COVER RAC.
20
78003040050
FOOTREST L/S 08
20
78003041050
FOOTREST R/S 08
21
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
22
54603041000
FOOTREST SPRING L/S & R/S
23
0125100003
washer DIN 125 A 10.5
24
0094032253
PIN DIN0094-3,2X25 STEEL
25
59403002044
SUB FRAME CPL. ALU RAC.(G3) 03
26
0019080266S
Vis (M8x26)
27
0019080206S
Vis (Flat M8x20)
30
51103053000
CHAIN SLIDING PIECE BELOW '97
31
51103053051
BUSHING 8,2X10X20
32
0015080353
Vis
33
54310086200
Nut (M8x10,9)
34
54804067000
CHAIN SLIDING PIECE 03
35
0025080306
Vis
36
36003014000
Rondelle (Lock)
39
0125060003
WASHER DIN0125-A 6,4
46
59431096000
EXPANSION TANK CPL. 2004
47
0770800021
O-Ring
48
45239060050
COLLAR BUSHING 6,3X8X13X9,5
50
0024060106
Vis
51
0025060206
Vis
52
0017060205
Vis
59
79608052000
BUSH 6X11X16X5 MM
60
72210079000
BUCKET
61
59405011000
HEAT SHIELD 04

Узлы для 525 SMR (8503D0) [EU] KTM
