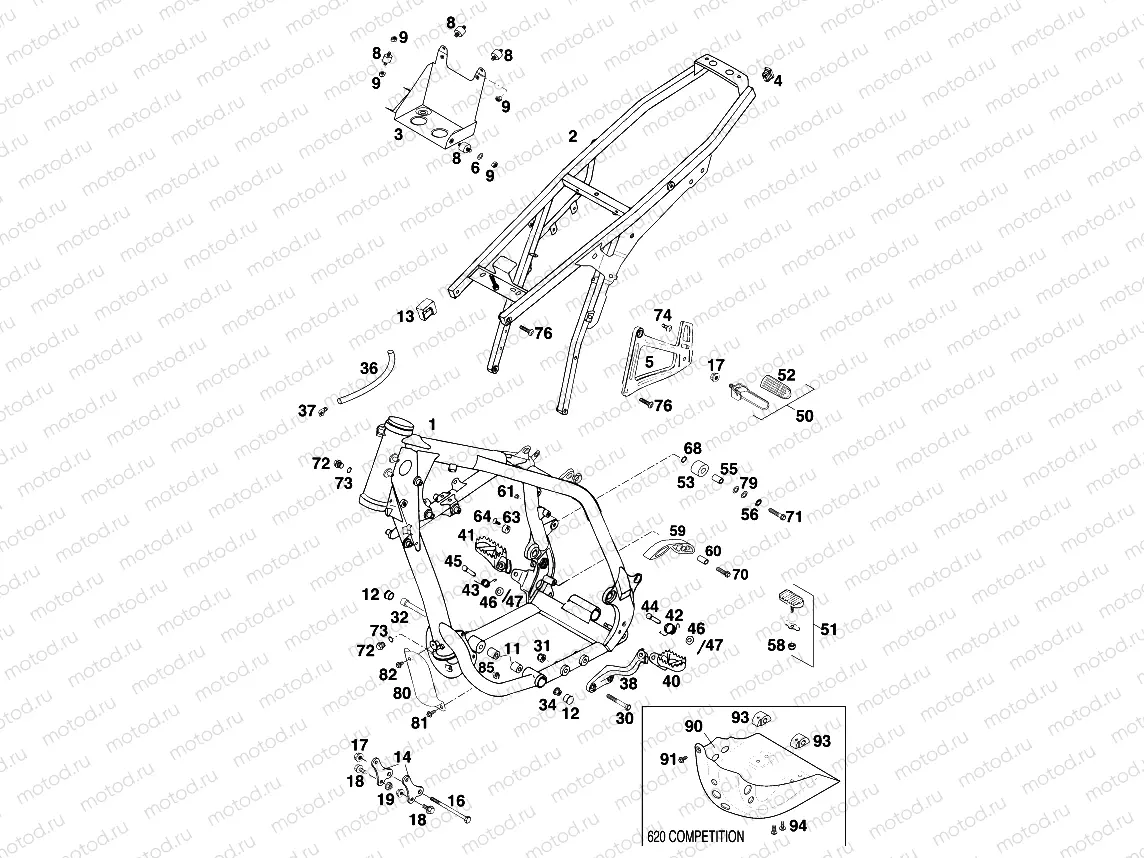

FRAME

FRAME
Например: 58103004200
0
58103004200
Null
0
58303150044
FOOT REST REAR R/S CPL.'95
1
58303001900
% frame 620 competition sem '
1
58403001300
% frame "n" 400/640 lc4 koku.'
2
5840300234430
Sub frame cpl. "i3" black 06
49 878 ₽/шт
3
58403002270
BRACKET F. BATTERY LC4 '99
4
58303002090
PLUG 12 X 17 MM
5
58103003200
Null
6
0137060000
SPRING WASHER DIN0137-B 6
8
58403002010
RUBBER GROMMET 20X15-M6X8-(2)
9
0985060003
SELF LOCK. NUT DIN0985-M 6
11
58003012000
SPACER ROLLER 10,3X20X22
12
71001012100
PVC CAP D=22MM
13
58307015000
TANK SUPPORT '93
14
58303055000
ENGINE SUPPORT AGW '94
16
0931101103
HH SCREW DIN0931-M10X110
17
49009082000
flanged hex nut DIN 6927 M10 WS15
18
49109481052
Vis
19
54310086000
Null
30
0931100603
HH SCREW DIN0931-M10X60
31
0985100003
SELF LOCKING NUT DIN0985-M10
32
0912101603
AH SCREW DIN0912-M10X160
34
55530044000
Nut
36
55007016001
PVC-HOSE 7X10 PER METER
37
50303089000
ANGLE PIECE '97
38
58303038000
FOOTREST BRACKET L/S '93
40
5460304001030
FOOTPEG KIT
8 801 ₽/шт
41
5460314000019
FOOTREST R/S '93
42
58303041000
FOOTREST SPRING L/S '93
43
54603041000
FOOTREST SPRING L/S & R/S
44
58303044000
BOLT FOR FOOTREST
45
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
46
0125100003
washer DIN 125 A 10.5
47
0094032253
PIN DIN0094-3,2X25 STEEL
50
58303050044
FOOTREST REAR L/S CPL. '95
51
58303045044
FOOTREST RUBBER CPL. '94
52
58303051000
Footrest rubber
53
58403060000
CHAIN ROLL 12X29X22,5 '98
55
58403060065
BUSH CHAIN ROLL 8X12X23 '98
56
0797080003
Rondelle (Lock)
59
51103053000
CHAIN SLIDING PIECE BELOW '97
60
51103053051
BUSHING 8,2X10X20
61
54403135000
PLASTIC CAP SFL10
63
58303063000
BRAKE LEVER STOP '93
64
0991060202
FLAT HEAD DIN7991-M 6X20
68
36003014000
Rondelle (Lock)
70
0025080306
Vis
71
0025080406
Vis
72
0910100003
PLUG DIN0910-M 10X1
73
58038022900
CU-SEAL RING 10 X 14 X 1,5
74
0019080206S
Vis (Flat M8x20)
76
0019080266S
Vis (M8x26)
79
0125080003
Rondelle
80
58303010000
COVER OIL FILTER '94
81
0024060156
Vis
82
0024060106
Vis
85
50235033300
SNAP-NUT HOLDER M6 KP142
90
58303005144
Null
93
58003012200
ENGINE PROTECTOR BRACKET '97
