Главная Каталог товаров KTM EPC 1997 KTM Offroad KTM 1997 Enduro KTM 1997 Offroad 620 EGS-E ADVENTURE (972675) [EU] KTM FRAME

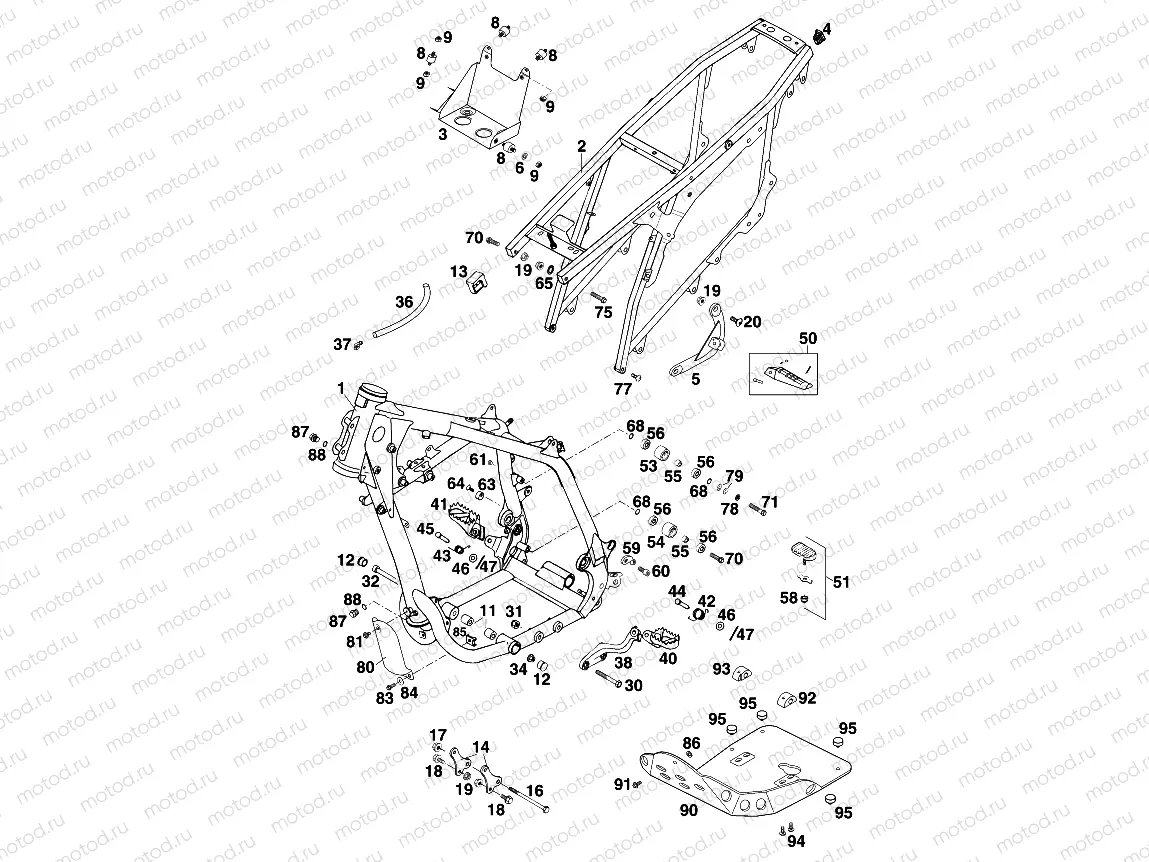

FRAME

FRAME

Например: 51103051000

0

51103051000

FOOTREST REAR R/S''R''STING,ADV.

0

58203004000

FOOTREST BRACKET REAR R/S ADV.

1

58203001000

FRAME W. OILRESERVOIR ADV. '97

2

58203002000

SUB FRAME CPL.STEEL ADVENT.'97

3

58403002270

BRACKET F. BATTERY LC4 '99

4

58303002090

PLUG 12 X 17 MM

5

58203003000

FOOTREST BRACKET REAR L/S ADV.

6

0137060000

SPRING WASHER DIN0137-B 6

8

58403002010

RUBBER GROMMET 20X15-M6X8-(2)

9

0985060003

SELF LOCK. NUT DIN0985-M 6

11

58003012000

SPACER ROLLER 10,3X20X22

12

71001012100

PVC CAP D=22MM

13

58307015000

TANK SUPPORT '93

14

58303055000

ENGINE SUPPORT AGW '94

16

0931101103

HH SCREW DIN0931-M10X110

17

49009082000

flanged hex nut DIN 6927 M10 WS15

18

49109481052

Vis

19

54310086000

Null

20

0107080203

AH OVAL H.SCREW DIN0170-M 8X20

30

0931100603

HH SCREW DIN0931-M10X60

31

0985100003

SELF LOCKING NUT DIN0985-M10

32

0912101603

AH SCREW DIN0912-M10X160

34

55530044000

Nut

36

55007016001

PVC-HOSE 7X10 PER METER

37

50303089000

ANGLE PIECE '97

38

58303038000

FOOTREST BRACKET L/S '93

40

58203040000

FOOTREST L/S ADVENTURE '97

41

58203041000

FOOTREST R/S ADVENTURE '97

42

58303041000

FOOTREST SPRING L/S '93

43

54603041000

FOOTREST SPRING L/S & R/S

44

58303044000

BOLT FOR FOOTREST

45

54803044000

PIN FOR FOOT PED 51.5X9.8 MM

46

0125100003

washer DIN 125 A 10.5

47

0094032253

PIN DIN0094-3,2X25 STEEL

50

51103050000

FOOTREST REAR L/S''L''STING,ADV.

51

58303045044

FOOTREST RUBBER CPL. '94

53

50203053000

CHAIN ROLL D=30MM

54

52303053100

CHAIN ROLL D=35MM 125-380 '99

55

74003021000

BUSHING 8.2 X 12 X 6

56

0625006087

GROOVED BALL BEAR. 608 2RS C3

59

58203029000

SWITCH BRACKET F. ADVENTURE'97

60

0912100160

AH SCREW DIN0912-M10X16

61

54403135000

PLASTIC CAP SFL10

63

58303063000

BRAKE LEVER STOP '93

64

0991060202

FLAT HEAD DIN7991-M 6X20

65

58411098000

CONTACT WASHER M8 VSV-K8

68

36003014000

Rondelle (Lock)

70

0025080306

Vis

71

0025080406

Vis

75

0015080353

Vis

77

0019080266S

Vis (M8x26)

78

0797080003

Rondelle (Lock)

79

0125080003

Rondelle

80

58303010000

COVER OIL FILTER '94

81

0024060106

Vis

83

0025060166

Vis

84

0021060003

Rondelle

85

54603048100

clip nut M6

86

50232050001

Rondelle (6,4x17x3)

87

0910100003

PLUG DIN0910-M 10X1

88

58038022900

CU-SEAL RING 10 X 14 X 1,5

90

58203090000

ENGINE PROTECTOR ALU ADV.'97

91

0024060136

Vis

92

58003012100

Null

93

58003012200

ENGINE PROTECTOR BRACKET '97

94

0024060156

Vis

95

54308042000

Damper
