Главная Каталог товаров KTM EPC 1996 KTM Offroad KTM 1996 Enduro KTM 1996 Offroad 125 EXC M/Ö (717563) [US] KTM FRAME

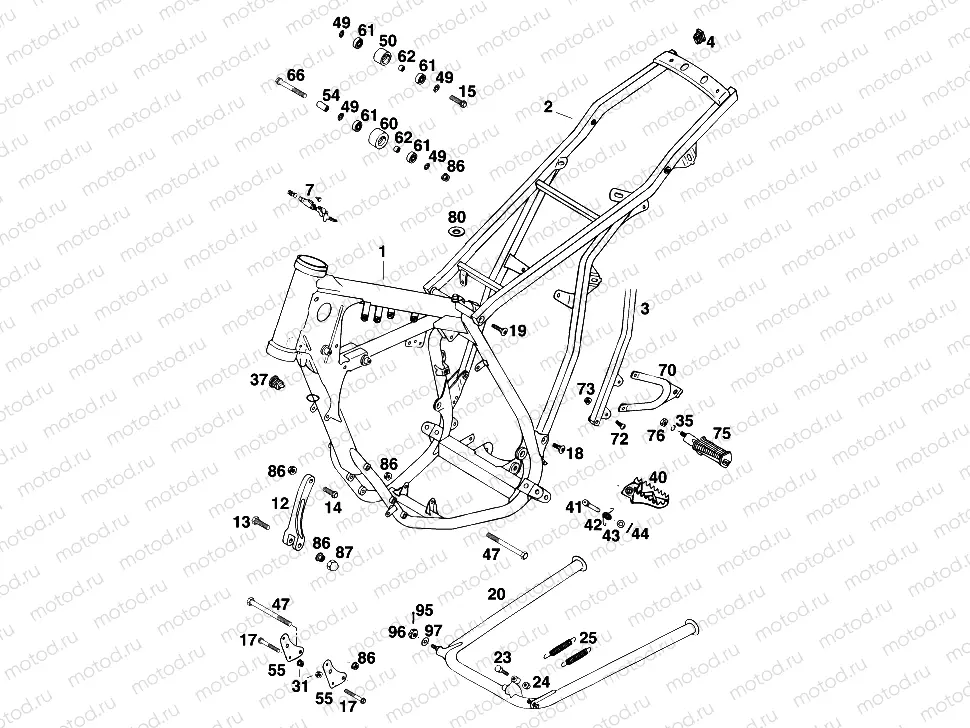

FRAME

FRAME
Например: 49003350000
0
49003350000
FOOTREST REAR R/S CPL.
0
58303103000
*FOOT REST BRACKET REAR R/S 93
1
50203001900
* FRAME 125 SX '94
1
50203401900
FRAME 125 EXC/EGS '94
2
50203002800
SUB FRAME ALU SX
2
50203402900
SUB FRAME STEEL EXC/EGS '94
3
50203502900
SUB FRAME STEEL EXC/EGS
4
58303002090
PLUG 12 X 17 MM
7
71003007000
STEERING HEAD LOCK CPL. ZADI
12
50203045700
ENGINE BRACE 125 '91
13
0931080303
HH SCREW DIN931 M8x30
14
0025080256
Vis
15
0025080306
Vis
17
0025060456
Vis
18
0019080206S
Vis (Flat M8x20)
19
0019080266S
Vis (M8x26)
20
5020302210019
CENTRE STAND 125 '93
23
0933080253
HH SCREW DIN0933-M 8X25
24
0934080003
Nut
25
10003021000
STAND SPRING SHORT (short)
31
56509064000
SELF LOCKING NUT M6
35
0127100003
SPRING RING DIN0127-B10
37
42007049000
PLASTIC CAP
40
54603040100
% foot rest l/s wide '
40
5460314010019
Footrest right anthracite 99
4 794 ₽/шт
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
54603041000
FOOTREST SPRING L/S & R/S
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
47
0931080903
HH SCREW DIN931 M8x90
49
36003014000
Rondelle (Lock)
50
50203053000
CHAIN ROLL D=30MM
54
50203053101
BUSHING 8X12X26 CHAIN ROLL
55
50203055000
* ENGINE SUPPORT STEEL '87
60
52303053100
CHAIN ROLL D=35MM 125-380 '99
61
0625006087
GROOVED BALL BEAR. 608 2RS C3
62
74003021000
BUSHING 8.2 X 12 X 6
66
0015080703
Vis
70
5830300300030
FOOTRESTBRACKET REAR L/S BLACK
11 349 ₽/шт
72
0107080203
AH OVAL H.SCREW DIN0170-M 8X20
73
54310086000
Null
75
49003250000
FOOTREST REAR L/S CPL.
76
0934100003
HEXAGON NUT DIN0934-M10
80
51005067100
INSOLATE WASHER 12X28X3
87
16001036013
* hex nut cover
95
0094020163
PIN DIN0094-2,0X16
96
0937080003
Null
97
0125080003
Rondelle
