Главная Каталог товаров KTM EPC 1994 KTM Offroad KTM 1994 Enduro KTM 1994 Offroad 350 E-XC 4T (823548) [EU] KTM FRAME

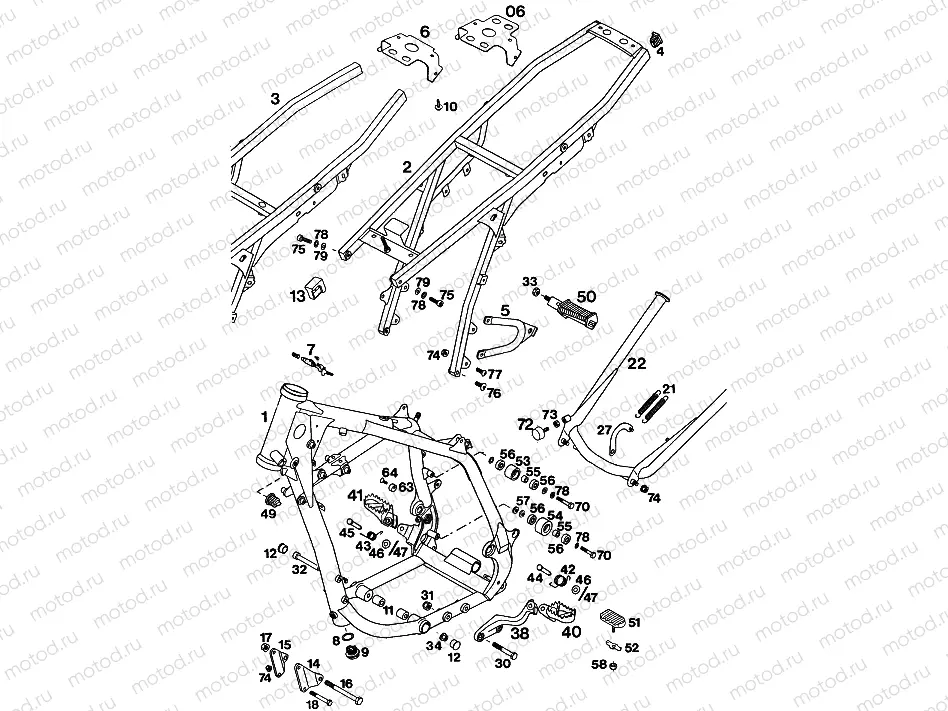

FRAME

FRAME

Например: 49003350000

0

49003350000

FOOTREST REAR R/S CPL.

0

58303103000

*FOOT REST BRACKET REAR R/S 93

1

58303001000

*FRAME W. OIL RESERVOIR LC4'93

1

58303001100

FRAME WITHOUT OIL RESERVOIR 94

2

58303002400

* SUB FRAME CPL.STEEL '96

3

58303102100

% sub frame alu exc/egs 4-str.

4

58303002090

PLUG 12 X 17 MM

5

5830300300030

FOOTRESTBRACKET REAR L/S BLACK

11 349 ₽/шт

6

58303002045

BUSHING EXC-NUMBERPLATECARRIER

6

58303002145

BUSHING EGS-NUMBERPLATECARRIER

7

71003007000

STEERING HEAD LOCK CPL. ZADI

8

58038022800

SEAL RING 22x27x2 (COPPER)

9

58038019050

DRAIN PLUG W. MAGNET

10

0024060136

Vis

11

58003012000

SPACER ROLLER 10,3X20X22

12

71001012100

PVC CAP D=22MM

13

58307015000

TANK SUPPORT '93

14

58003055500

ENGINE SUPPORT L/S STEEL '90

15

58003155500

ENGINE SUPPORT R/S STEEL '90

16

0931101103

HH SCREW DIN0931-M10X110

17

49009082000

flanged hex nut DIN 6927 M10 WS15

18

0931080753

* HH SCREW DIN931 M8x75

21

10003021000

STAND SPRING SHORT (short)

22

57503022000

% center stand short 378mm '

22

5830302200019

CENTER STAND 408MM ANTHR. 99

31 542 ₽/шт

27

58303027000

SPRINGBOW '93

30

0931100603

HH SCREW DIN0931-M10X60

31

0985100003

SELF LOCKING NUT DIN0985-M10

32

0912101603

AH SCREW DIN0912-M10X160

33

0934100003

HEXAGON NUT DIN0934-M10

34

55530044000

Nut

38

58303038000

FOOTREST BRACKET L/S '93

40

5460304001030

FOOTPEG KIT

8 801 ₽/шт

41

5460314000019

FOOTREST R/S '93

42

58303041000

FOOTREST SPRING L/S '93

43

54603041000

FOOTREST SPRING L/S & R/S

44

58303044000

BOLT FOR FOOTREST

45

54803044000

PIN FOR FOOT PED 51.5X9.8 MM

46

0125100003

washer DIN 125 A 10.5

47

0094032253

PIN DIN0094-3,2X25 STEEL

49

42007049000

PLASTIC CAP

50

49003250000

FOOTREST REAR L/S CPL.

51

58303045044

FOOTREST RUBBER CPL. '94

53

50203053000

CHAIN ROLL D=30MM

54

52303053100

CHAIN ROLL D=35MM 125-380 '99

55

74003021000

BUSHING 8.2 X 12 X 6

56

0625006087

GROOVED BALL BEAR. 608 2RS C3

57

71004038000

WASHER 8,4 X 17 X 3

58

0985060003

SELF LOCK. NUT DIN0985-M 6

63

58303063000

BRAKE LEVER STOP '93

64

0991060202

FLAT HEAD DIN7991-M 6X20

70

0931080403

HH SCREW DIN931 M8x40

72

58303070000

STOP RUBBER M8

73

0934080003

Nut

74

54310086000

Null

75

0912080253

AH SCREW DIN0912-M 8X25

76

0019080266S

Vis (M8x26)

77

0107080203

AH OVAL H.SCREW DIN0170-M 8X20

78

0797080003

Rondelle (Lock)

79

0125080003

Rondelle
