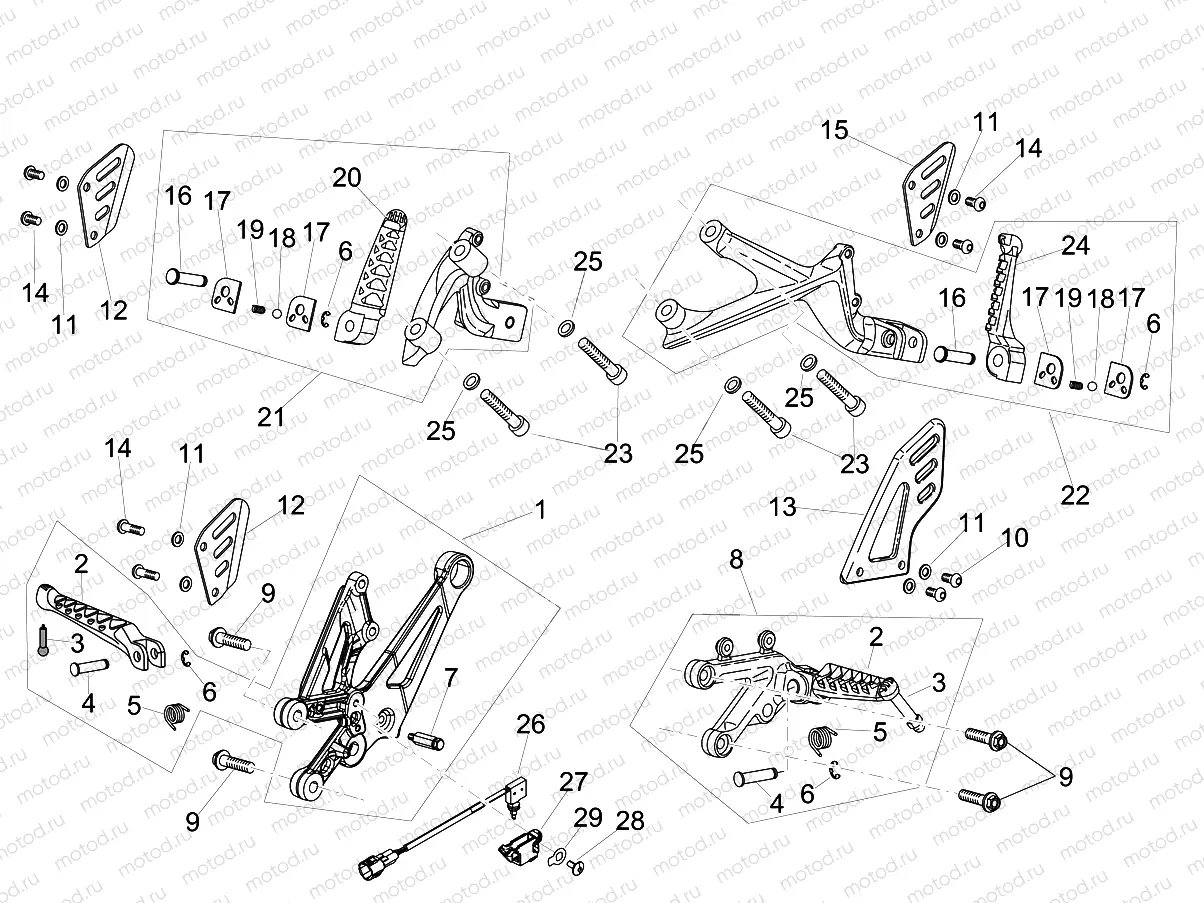

Foot rests

Foot rests
1
2B0056589
RH front footrest bracket
2
AP8146862
Repose pieds (FR)
3
AP8134955
Footrest pin
4
CM228401
Footrest pin
5
AP8121224
Footrest return spring
6
AP8120573
pc - Seeger
7
GU05677730
Springs fixing pin
8
AP8146502
LH front footrest bracket
9
AP8150540
Vis
10
AP8224470
Vis
12
2B005860
RH guard
13
2B005861
LH protection
14
AP8150537
pc - Vis (M6x12)
15
2B005862
LH rear footrest guard
16
CM228402
pc - Footrest pin
17
AP8134451
0 pc - Footrest plate
18
AP8101861
pc - Ball
19
AP8121133
Spring
20
AP8146616
Repose pieds (rear RH)
21
2B0058709
Rear footrest, RH cpl
22
2B0058729
Rear footrest, LH
24
AP8146617
Repose pieds (rear LH)
25
658830
Rondelle (spring)
26
2D000325
Switch - clutch/rear brake
27
2B003519
switch mount
28
AP8150500
pc - Vis
29
2B004481
Safety washer

Узлы для RSV4 1100 Racing Factory ABS (APAC) APRILIA RSV 4 1100 (VIN: ZD4KEA00, ZD4KEWA)
