Главная Каталог товаров Triumph EPC 2018 Triumph STREET TWIN 914972, 917474 Triumph 2018 (VIN: SMTD31GN, SMTDAD74) Foot Controls

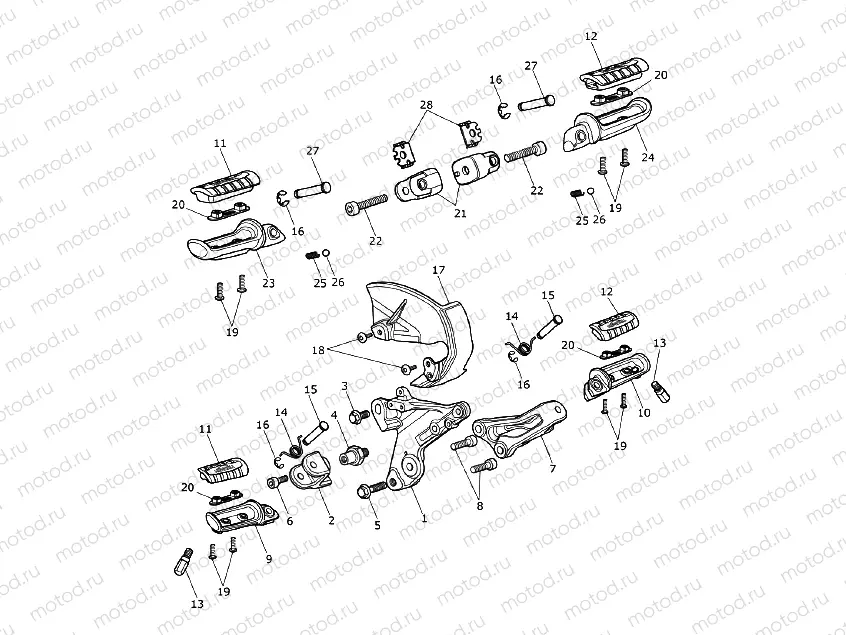

Foot Controls

Foot Controls

Например: T2087120

1

T2087120

Kit, Control Plate/Bracket

1 шт. в узле

1

T2084015

Control Plate, RH

1 шт. в узле

2

T2081134

Clevis, RH

1 шт. в узле

3

T3205781

Bolt, HHF, Lghtd, M8 x 1.25 x

1 шт. в узле

4

T3331561

Pivot Pin, Brake Pedal

1 шт. в узле

5

T3200601

Bolt, HHF, M8 x 40, Slv

1 шт. в узле

6

T3051097

Screw, Cap/Hd, M8 x 25, Silver

1 шт. в узле

7

T2081083

Clevis, LH

1 шт. в узле

8

T3050323

Screw, Cap/Hd, M8 x 30, Slv

2 шт. в узле

9

T2088088

Footrest, RH, Satin

1 шт. в узле

10

T2088089

Footrest, LH, Satin

1 шт. в узле

11

T2081977

Rubber, Pillion, RH

2 шт. в узле

12

T2081978

Rubber, Pillion, LH

2 шт. в узле

13

T2088018

Peg, Bank Angle

2 шт. в узле

14

T2089638

Return Spring, Footrest

2 шт. в узле

15

T2080546

Pin, Pivot, Footrest

2 шт. в узле

16

T3500207

Circlip, Ext 8 X 0.89

4 шт. в узле

17

T2021057

Cover, Sprocket, Inner

1 шт. в узле

18

T3330955

Screw, But/Hd, M5 x 14, Slv, E

2 шт. в узле

19

T3330728

Screw, Pan/Hd, Tx, M5 x 16, En

8 шт. в узле

20

T2086988

Nutplate, Footpeg

4 шт. в узле

21

T2081501

Clevis, Pillion

2 шт. в узле

22

T3051043

Screw, Cap/Hd, M8 x 45

2 шт. в узле

23

T2082305

Rear Footrest, RH, Satin

1 шт. в узле

24

T2082308

Rear Footrest, LH, Satin

1 шт. в узле

25

T2081674

Spring, Detent

2 шт. в узле

26

T2081675

Detent Ball

2 шт. в узле

27

T2080547

Pivot pin

2 шт. в узле

28

T2081672

Detent Plate

2 шт. в узле
