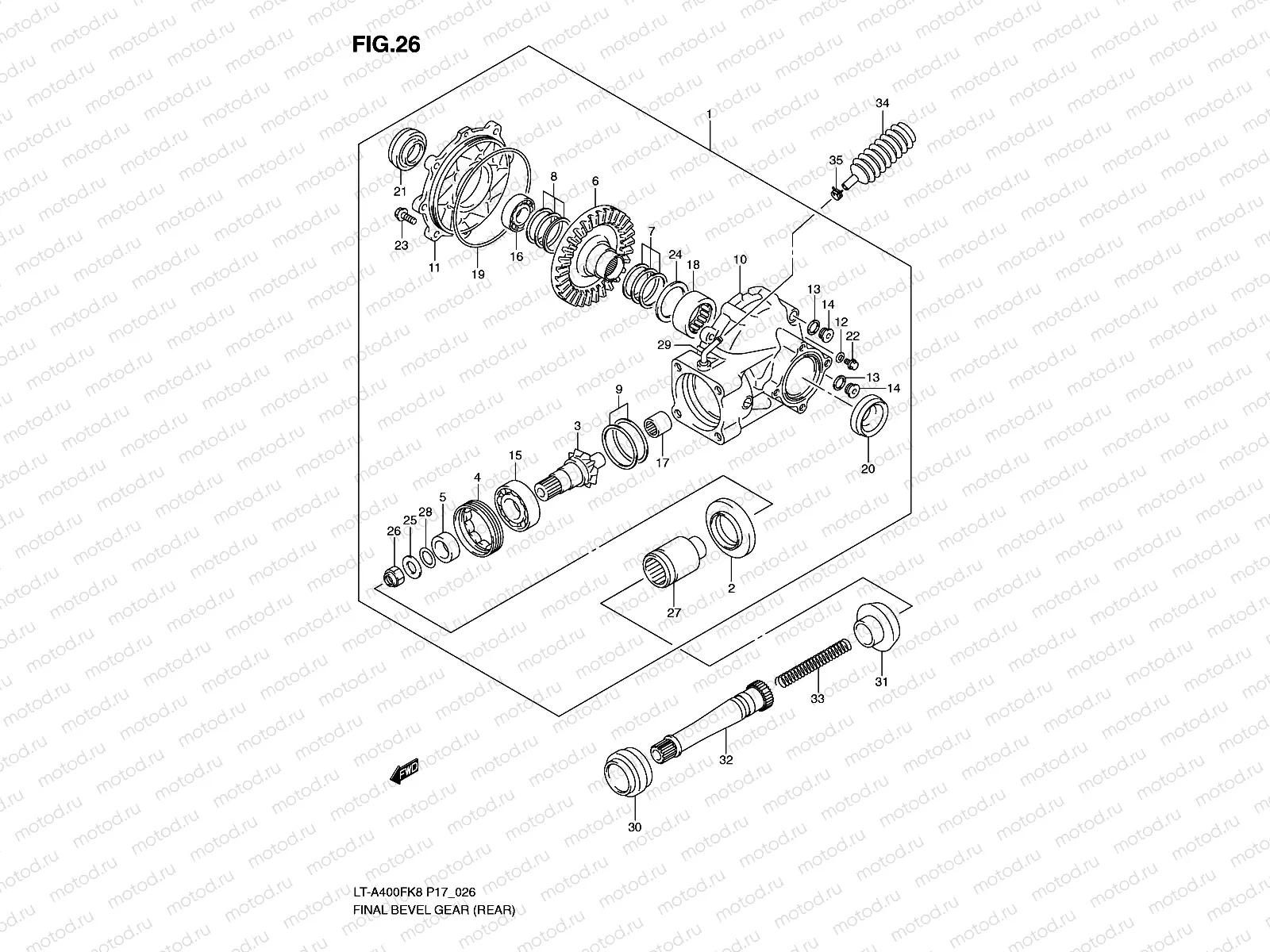

FINAL BEVEL GEAR (REAR)

FINAL BEVEL GEAR (REAR)
Например: 27410-38F50
1
27410-38F50
Case assy,rear
2
27156-27H00
Seal,final driv
3
27311-27HM0
Gear,final driv
4
27312-38F00
Stopper,final d
5
27316-38FM0
Spacer,rear fin
6
27321-27HM0
Gear,final driv
7
27326-09810
Shim set,final
8
27326-18810
Shim set,final
9
27445-24810
SHIM SET,FINAL DRIVE GEAR
1 412 ₽/шт
10
27450-27HM0
Case,rear final
11
27461-38FM0
Case,rear final
12
09168-06018
Прокладка
119 ₽/шт
13
09168-16002
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
170 ₽/шт
14
09248-16012
ШЛАНГ
289 ₽/шт
15
27405-38FN0
Bearing,final d
16
27405-38FP0
Bearing,final d
17
27405-38FR0
Bearing,final d
18
27405-38FS0
Bearing,final d
19
27405-38FT0
O ring,bearing
20
09283-38009
SEAL,OIL(38X54X6)
1 083 ₽/шт
21
09283-42011
Oil seal 42x62x
22
27401-38FM0
Bolt,oil check
23
27401-38FN0
Bolt,rear final
24
27407-38FN0
Washer,final dr
25
09160-16026
Rondelle
26
09159-16003
ГАЙКА
178 ₽/шт
27
27171-27HM0
Coupling,rr fin
28
27405-27HM0
O ring,coupling
29
09364-08009
Union
30
27153-27H01
Boot,rr prop sh
31
27153-27H21
Boot,joint shaf
32
27155-27H00
Shaft,rear prop
32
27155-27H10
Shaft,rear prop
33
27192-31G10
Spring,rear pro
34
27491-38F00
Case,breather
35
09401-08413
Collier
