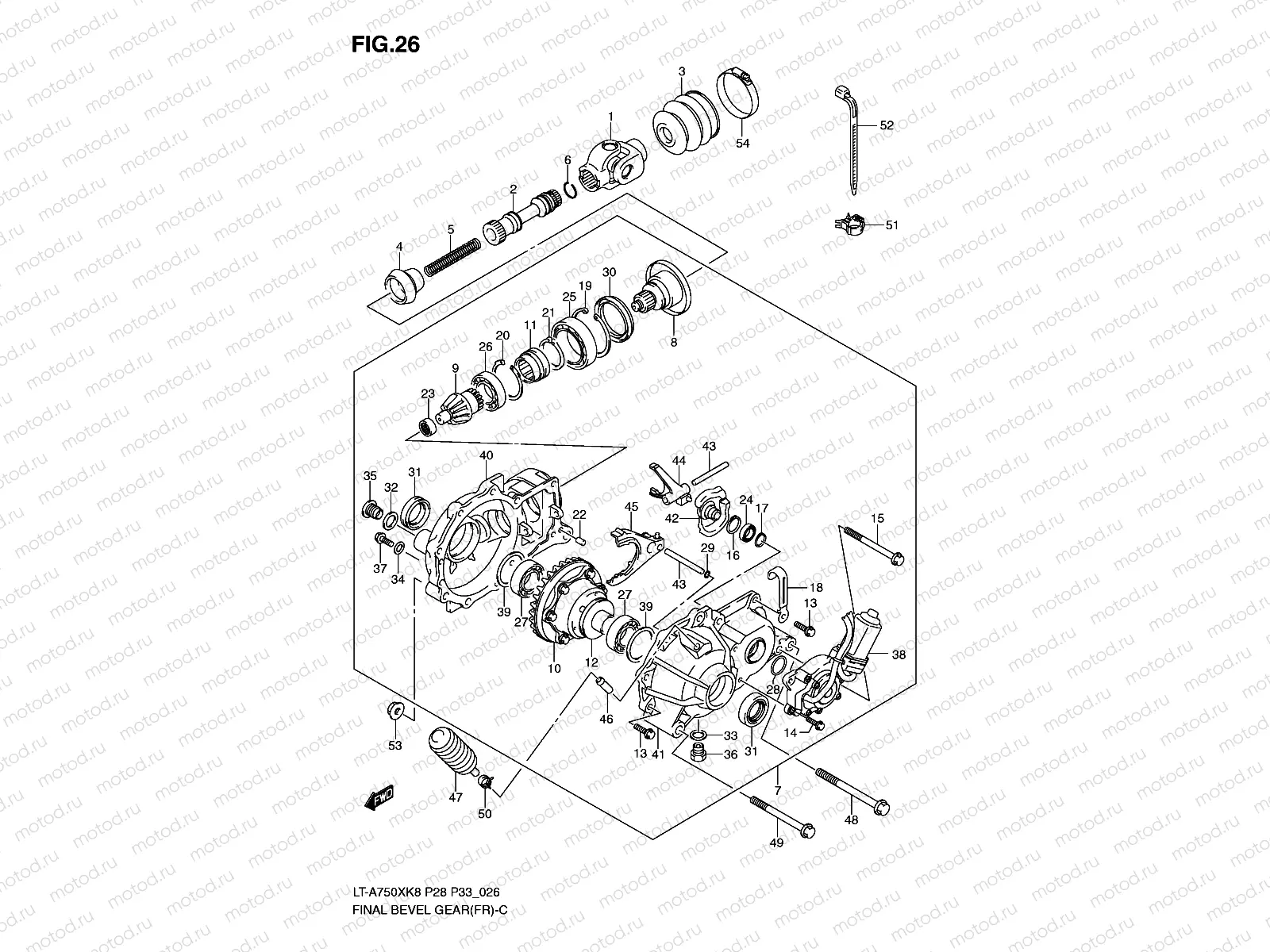

FINAL BEVEL GEAR (FRONT)

FINAL BEVEL GEAR (FRONT)
Например: 27100-31G00
1
27100-31G00
Yoke,fr propell
2
27151-31G00
Shaft,propeller
2
27151-31G30
Shaft,propeller
3
27153-31G22
Boot,front prop
4
27153-31G31
Boot,front prop
5
27191-31G00
Spring,fr prope
6
09381-20004
КОЛЬЦО СТОПОРНОЕ
162 ₽/шт
7
27400-11H10
Case assy,rear
8
27130-31GA0
SHAFT ASSY, INPUT
9
27311-11HA1
Pinion,drive
10
27320-31GB0
EAR RING ASSY
11
27371-31GA0
Sleeve
12
27381-31GA0
Pin,sleeve diff
13
27401-38FA1
Vis (8x25)
14
27401-31GB0
Vis
15
27401-31GC0
Flange bplt,hex
16
27403-31GA0
Snap ring
17
27403-31GB0
Snap ring
18
27403-31GC0
Snap ring
19
27403-38FA0
Ring snap
20
27403-38FB0
Ring snap
21
27403-38FC0
Snap ring
22
27404-31GA0
Pin
23
27405-31GA0
Bearing,pinion
24
27405-31GB0
Roulement
25
27405-38FA0
Roulement
26
27405-38FB0
Roulement
27
27405-38FD0
Roulement
28
27406-31GE0
Oil seal
29
27406-31GF0
O-Ring
30
27406-38FB0
Oil seal
31
27406-38FD0
Oil seal
32
27407-31GA0
Shim set,final
33
27407-38FB0
Rondelle
34
27407-38FD0
Rondelle
35
27409-38FA0
Plug
36
27409-38FB0
Plug
37
27409-38FC0
Plug,level
38
27421-31GA0
Dvc assy
39
27445-38FA0
Shim set
40
27451-31GA0
Housing,final d
41
27461-31GA0
Cover,final dri
42
27911-31GA0
Cam shift
43
27921-31GA0
Rod shift
44
27941-31GA0
Fork shift,2wd
45
27951-31GA0
Fork shift,diff
46
09364-08003
UNION
47
27491-38F00
Case,breather
48
09103-10061
BOLT(10X90)
4 380 ₽/шт
49
09103-10148
BOLT(10X110)
888 ₽/шт
50
09401-08413
Collier
51
09403-15405
CLAMP
1 490 ₽/шт
52
09407-14403
КЛЕММА
221 ₽/шт
53
09159-10115
Гайка
289 ₽/шт
54
09402-80501
Collier
