Главная Каталог товаров Triumph EPC 2016 Triumph Tiger 800 674842 > TIGER XCx Triumph 2016 (VIN: SMTTRE16) Fairings & Sumpguard

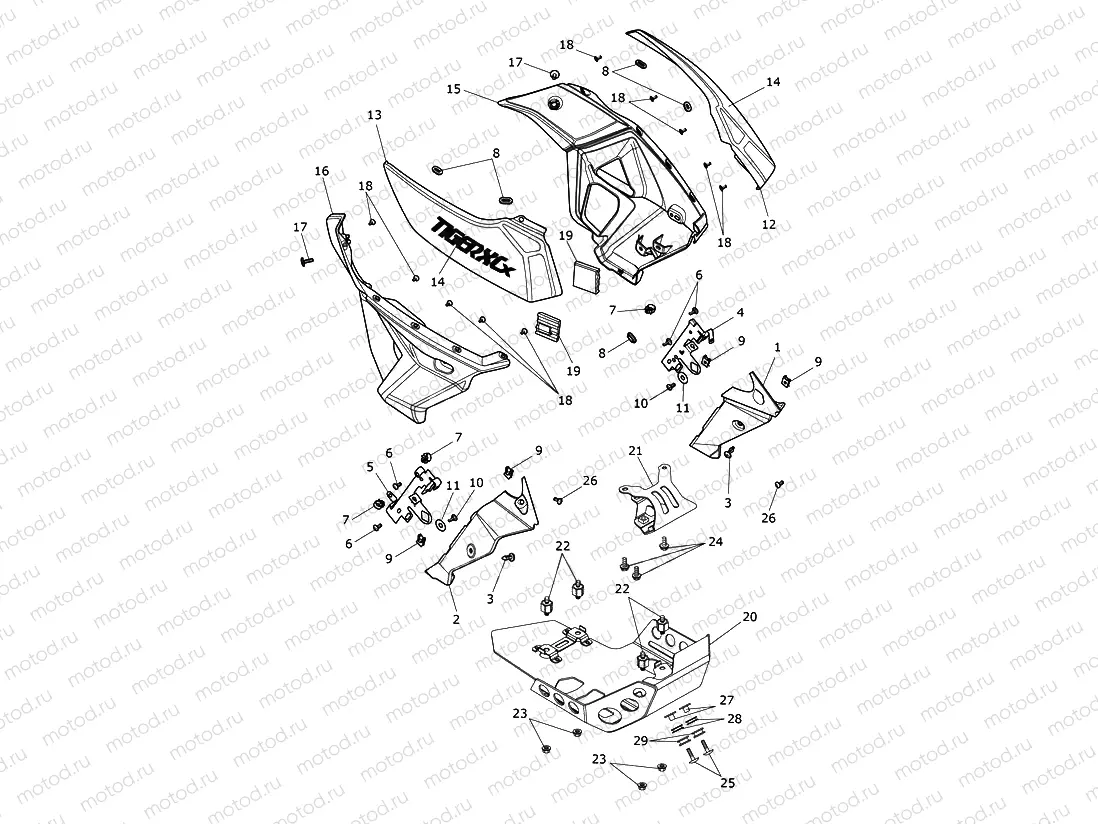

Fairings & Sumpguard

Fairings & Sumpguard

Например: T2306676

1

T2306676

Radiator Infill, LH

2

T2306677

Radiator Infill, RH

3

T3701170

Plastic Rivet, Screw Type

2 шт. в узле

4

T2303726

Bracket, End Tank, LH

5

T2303727

Bracket, End Tank, RH

6

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

4 шт. в узле

7

T3700182

Clip, Omega, 18mm x 14mm

3 шт. в узле

8

T3020330

Grommet, Rectangular

5 шт. в узле

9

T3350123

Nut, Captive, M5, Non-Secured

4 шт. в узле

10

T3331062

Bolt, But/Hd, M5 x 16, Shld, S

2 шт. в узле

11

T3555033

Washer, 8.4 x 24 x 2

2 шт. в узле

12

T2306634-PS

Upper Rad Cowl, LH, Pntd

13

T2306636-PS

Upper Rad Cow, RH, Pntd

14

T2306217

Decal, Rad Cowl, XCx

2 шт. в узле

15

T2306678-LS

ower Cowl, LH, Pntd, Graphite

16

T2306679-LS

ower Cowl, RH, Pntd, Graphite

17

T3331661

Bolt, But/Hd, M6 x 20, Shld, S

2 шт. в узле

18

T3331436

Vis (4x1)

10 шт. в узле

19

T3450345

Clip, Wire, Self Adhesive

2 шт. в узле

20

T2308778

Sumpguard, Aluminium

21

T2307261

Bracket, Sumpguard

22

T2307247

Mount, Rubber, M8

4 шт. в узле

23

T3350004

Locknut, Flanged, M8 x 1.25

4 шт. в узле

24

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

3 шт. в узле

25

T3330738

Screw, But/Hd, M6 x 25, Enc

2 шт. в узле

26

T3330955

Screw, But/Hd, M5 x 14, Slv, E

2 шт. в узле

27

T3010305

Flanged Sleeve, 6.4 x 9.5 x 10

2 шт. в узле

28

T3020520

Bush, Split, 15 x 25 x 4.8

2 шт. в узле

29

T3020610

Grommet, 9 x 25 x 10.7

2 шт. в узле
