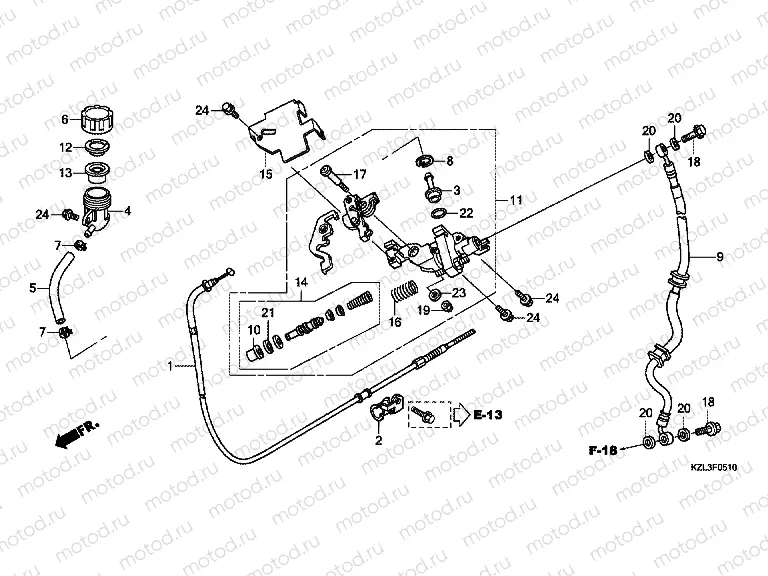

F-5-10 MASTER CYLINDER (CBS)

F-5-10 MASTER CYLINDER (CBS)
Например: 43450-KZL-931
1
43450-KZL-931
CABLE COMP., RR. BRAKE SE
2
43455-KZL-930
CLAMPER, RR. BRAKE CABLE
3
43503-KZ3-B01
CONNECTOR
1 054 ₽/шт
4
43511-KS6-702
CUP COMP., MASTER CYLINDE
1 552 ₽/шт
5
43512-KZL-931
HOSEM/C
6
43513-KWN-931
CAP, MASTER CYLINDER
7
43514-KS6-701
CLAMP, MASTER CYLINDER OI
1 022 ₽/шт
8
43517-KS6-701
CIRCLIP, RR. MASTER CYLIN
275 ₽/шт
9
45127-KZL-842
HOSE COMPCBS
10
45504-410-003
BOOT COMP.
771 ₽/шт
11
45510-KWN-305
CYLINDER SUB ASSY., MASTE
12
45518-GM9-711
PLATE, DIAPHRAGM
414 ₽/шт
13
45520-GM9-711
DIAPHRAGM
760 ₽/шт
14
45530-KVY-911
CYLINDER SET, MASTER
3 324 ₽/шт
15
47602-KZL-930
COVER, MASTER CYLINDER
16
47604-KWN-931
SPRING, DELAY
330 ₽/шт
17
90114-GEV-712
BOLT, PIVOT
519 ₽/шт
18
90145-GW3-981
BOLT, OIL, 10X22
660 ₽/шт
19
90301-GEV-711
Nut (6 mm)
346 ₽/шт
20
90545-KCW-880
Rondelle
291 ₽/шт
21
90651-MA5-671
CIRCLIP
275 ₽/шт
22
91212-422-006
O-Ring
283 ₽/шт
23
94101-06000
Rondelle (M6)
39 ₽/шт
24
95701-060-1400
Bolt
55 ₽/шт
