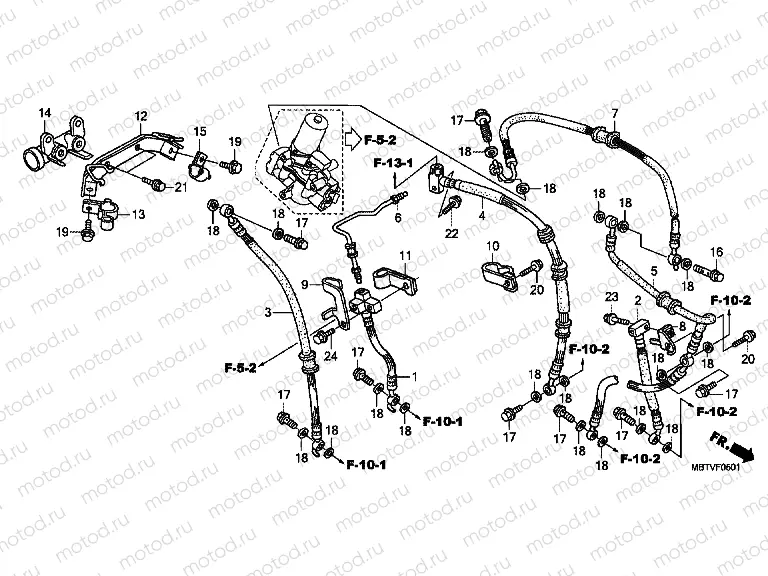

F-5-1 DELAY VALVE (XL1000VA)

F-5-1 DELAY VALVE (XL1000VA)

Например: 45125-MBT-D51

1

45125-MBT-D51

HOSE, R. FR. BRAKE MAIN

2

45126-MBT-D51

HOSE, L. FR. BRAKE MAIN

3

45127-MBT-D51

SUB HOSE, R. FR. BRAKE

4

45128-MBT-D51

HOSE, SECOND MASTER CYLIN

5

45129-MBT-D51

SUB HOSE, L. FR. BRAKE

6

45130-MBT-610

PIPE, BRAKE JOINT MAIN

1 245 ₽/шт

7

45144-MBT-D51

HOSE B, FR. ABS UNIT JOIN

8

45155-MBT-D10

STAY, FR. BRAKE PIPE

9

45156-MBT-D10

CLAMPER, FR. BRAKE PIPE

884 ₽/шт

10

45158-MBT-D10

CLAMPER, BRAKE HOSE

11

45161-MBT-D10

CLAMPER, BRAKE HOSE

12

45167-MBT-D50

STAY COMPFR BRK

13

45172-MBT-D50

CLAMPER DBRK HOS

14

46300-MBT-612

VALVE ASSY., DELAY

15

52115-MBT-D10

CLAMPER, BRAKE HOSE

16

90145-MR8-014

BOLT, OIL, 10X34

739 ₽/шт

17

90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

726 ₽/шт

18

90545-300-000

Rondelle

291 ₽/шт

19

95701-060-1207

Bolt

58 ₽/шт

20

95701-060-1607

Bolt

61 ₽/шт

21

95701-060-2007

Bolt

61 ₽/шт

22

95701-060-2207

Bolt

69 ₽/шт

23

95801-060-2507

Bolt

63 ₽/шт

24

95801-060-3007

БОЛТ

63 ₽/шт
