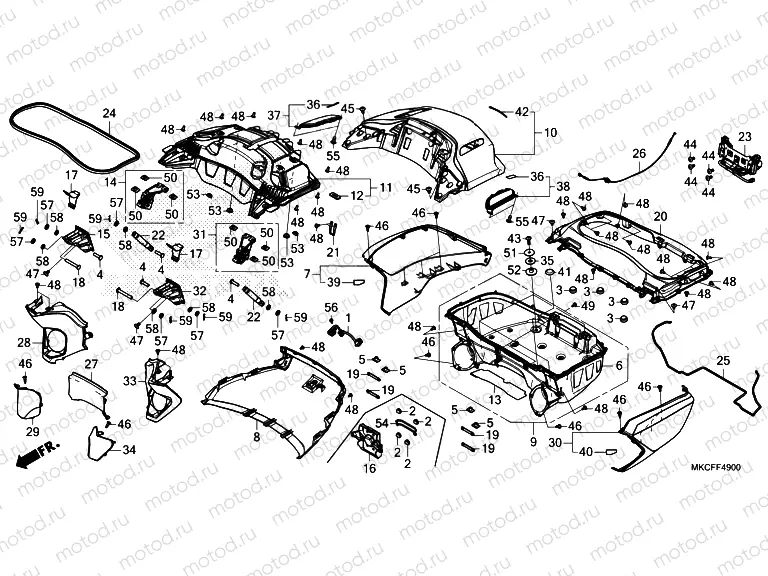

F-49 TRUNK BOX

F-49 TRUNK BOX

Например: 35390-MKC-A01

1

35390-MKC-A01

SWITCH ASSY., TRUNK OPENE

2

50318-041-600

PLUG, USELESS HOLE

204 ₽/шт

3

77110-KA3-730

RUBBER, SEAT MOUNTING

330 ₽/шт

4

77156-GZ4-670

PIN, SEAT HOOK

275 ₽/шт

5

80104-KJ2-000

NUT, RR. FENDER

275 ₽/шт

6

-

7

81113-MKC-L00ZA

OVER ASSY., R. TRUNK SID

7

81113-MKC-L00ZB

OVER ASSY., R. TRUNK SID

7

81113-MKC-LD0ZA

OVER ASSY., R. TRUNK SID

8

81115-MKC-L00ZA

OVER, CENTER LOWER TRUNK

8

81115-MKC-LD0ZA

OVER, CENTER LOWER TRUNK

8

81115-MKC-L00ZB

OVER, CENTER LOWER TRUNK

9

81119-MKC-L80

BOX COMP., TRUNK INNER LO

10

81120-MKC-LD0ZA

ID SET, TRUNK (WL) *2TN0

10

81120-MKC-L20ZB

ID SET, TRUNK (WL) *2TN0

10

81120-MKC-JR0ZC

LID SET, TRUNK (WL) *NHB5

11

81126-MKC-L00

INNER LID, TRUNK

12

81127-MKC-A00

T, INNER LID

13

81128-MKC-A30

T, TRUNK PANEL

14

81131-MKC-A00

HINGE A, R. TRUNK

15

81132-MKC-A00

HINGE B, R. TRUNK

16

81133-MKC-A30

HOLDER, TRUNK

17

81134-MKC-A00

RUBBER, HINGE

18

81136-MKC-A00

PIN A, TRUNK HINGE

19

81140-MKC-A00

PLATE, TRUNK HINGE

20

81150-MKC-L00

BOX, TRUNK INNER UPPER

21

81151-MKC-A00

ROD, TRUNK STRIKER

22

81155-MKC-L01

DAMPER, TRUNK LID

23

81160-MKC-A01

TCH COMP., TRUNK

24

81181-MKC-L00

RUBBER, TRUNK LID SEAL

25

81182-MKC-L00

RUBBER, TRUNK INNER BOX S

26

81184-MKC-L01

ABLE COMP., TRUNK EMERGE

27

81191-MKC-L00ZA

PANEL, FR. LOWER TRUNK *N

28

81193-MKC-L00ZA

OVER, R. FR. TRUNK *NH1*

29

81194-MKC-L00ZA

OVER, R. RR. SPEAKER *NH

30

81213-MKC-L00ZB

OVER ASSY., L. TRUNK SID

31

81231-MKC-A00

HINGE A, L. TRUNK

32

81232-MKC-A00

HINGE B, L. TRUNK

33

81293-MKC-L00ZA

OVER, L. FR. TRUNK *NH1*

34

81294-MKC-L00ZA

OVER, L. RR. SPEAKER *NH

35

81356-MKC-A00

RUBBER, TRUNK MOUNTING

36

81552-MKC-L00

SEAL, LID COVER

37

81650-MKC-LD0ZA

OVER COMP., R. TRUNK LID

37

81650-MKC-L00ZA

OVER COMP., R. TRUNK LID

37

81650-MKC-L00ZB

OVER COMP., R. TRUNK LID

38

81655-MKC-LD0ZA

OVER COMP., L. TRUNK LID

38

81655-MKC-L00ZB

OVER COMP., L. TRUNK LID

38

81655-MKC-L00ZA

OVER COMP., L. TRUNK LID

39

81991-MKC-L00

TAPE, R. PROTECTION

40

81992-MKC-L00

TAPE, L. PROTECTION

42

86102-MKC-L00

EMBLEM, HONDA (100MM)

43

90085-MAJ-A20

Vis (spec)

259 ₽/шт

44

90112-MJK-N20

SCREW, 5X12

204 ₽/шт

45

90114-MCJ-000

Vis

244 ₽/шт

46

90116-SP0-003

Rivet - panel fixing

228 ₽/шт

47

90119-MEW-920

Vis

236 ₽/шт

48

90121-MJK-N20

SCREW, TAPPING, 5X12

204 ₽/шт

49

93903-25380

Vis (5x16)

44 ₽/шт

50

90303-HA0-680

Nut (spec. 6x7)

244 ₽/шт

51

90506-MKC-A00

WASHER, TRUNK SET

52

90508-MKC-A00

OLLAR, RR. TRUNK

53

90852-KPP-T00

LUG, HOLE

204 ₽/шт

54

91315-MA6-003

O-Ring

307 ₽/шт

55

93903-24280

Vis

39 ₽/шт

56

93903-32180

SCREW TAPPING 3X8

57

94101-06000

Rondelle (M6)

39 ₽/шт

58

94111-06800

WASHER, SPRING, 6MM

39 ₽/шт

59

94251-06000

PIN, LOCK, 6MM

47 ₽/шт
