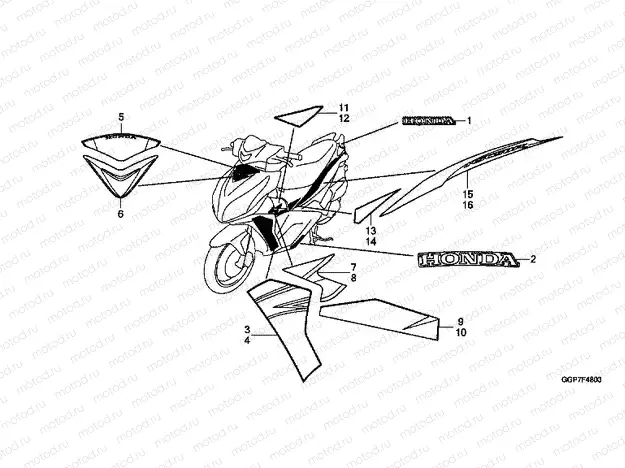

F-48-3 SIGN / STRIP (NSC50T2-4E, 5ED)

F-48-3 SIGN / STRIP (NSC50T2-4E, 5ED)
Например: 86102-GGP-D40ZC
1
86102-GGP-D40ZC
MARK HONDA (75MM) *
2
86104-GGP-D50ZA
MARK HONDA (185MM)
3
86641-GGP-D50ZA
STRIPE R. FR. SIDE
4
86642-GGP-D50ZA
STRIPE L. FR. SIDE
5
86643-GGP-D50ZA
STRIPE A FR. TOP CO
6
86644-GGP-D50ZA
STRIPE B FR. TOP CO
7
86645-GGP-D50ZA
STRIPE A R. MAIN PI
8
86646-GGP-D50ZA
STRIPE A L. MAIN PI
9
86647-GGP-D50ZA
STRIPE B R. MAIN PI
10
86648-GGP-D50ZA
STRIPE B L. MAIN PI
11
86649-GGP-D50ZA
STRIPE R. MAIN PIPE
12
86650-GGP-D50ZA
STRIPE L. MAIN PIPE
13
86801-GGP-D50ZA
STRIPE R. CENTER CO
14
86802-GGP-D50ZA
STRIPE L. CENTER CO
15
86831-GGP-D50ZA
STRIPE R. UPPER BOD
16
86832-GGP-D50ZA
STRIPE L. UPPER BOD
