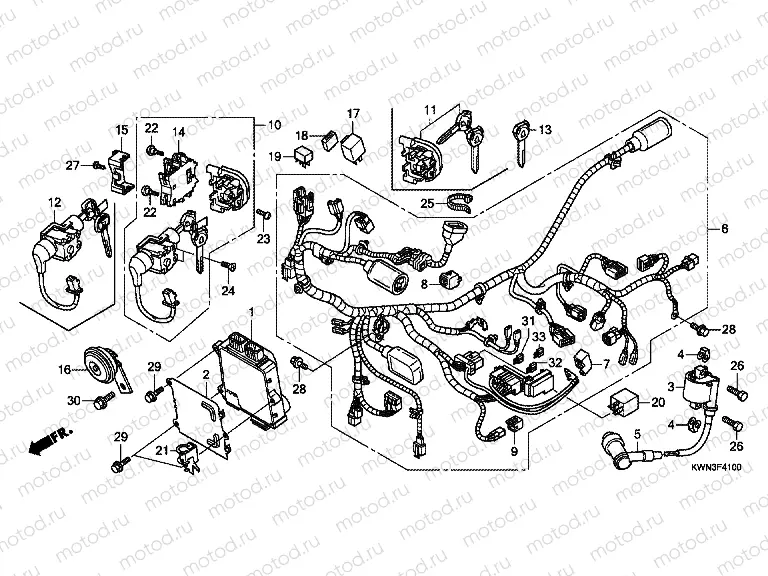

F-41 WIRING HARNESS (WW125EX2A / EX2B)

F-41 WIRING HARNESS (WW125EX2A / EX2B)
Например: 30400-KWN-643
1
30400-KWN-643
CONTROL UNIT, ENGINE
2
30401-KWN-900
COVERENG CONTL U
3
30510-KWN-902
Bobine d'allumage
4
30520-GFM-900
SPACER, IGNITION COIL
307 ₽/шт
5
30700-KWN-901
Spark plug cap
6
32100-KWN-640
Harness wire
7
32412-MV4-000
COVER, BATTERY TERMINAL
409 ₽/шт
8
32605-GEV-761
CAP, DUMMY (WPC 4P 090 M)
456 ₽/шт
9
32606-GEV-761
CAP, DUMMY (4P) (RED)
456 ₽/шт
10
35010-KWN-900
EY SET
11
35011-KWN-900
SHUTTER SET, KEY
12
35100-KWN-901
SWITCH ASSY., COMBINATION
13
35121-KVY-900
Clé Vierge
14
35190-KVG-901
SWITCH ASSY., FUEL LID &
2 890 ₽/шт
15
35191-KVG-901
COVER, CABLE
354 ₽/шт
16
38110-KWN-901
HORN COMP (HIGH)
17
38301-KJ6-743
Relais clignotant (mitsuba)
4 089 ₽/шт
18
38306-KK4-000
SUSPENSION, WINKER RELAY
291 ₽/шт
19
38501-KWN-901
RELAY COMP., POWER (MICRO
1 748 ₽/шт
20
38502-KWN-701
RELAY COMP., POWER (5P) (
3 035 ₽/шт
21
43456-KWN-900
CLAMPER ARR BRK
22
90101-MT4-000
Vis
157 ₽/шт
23
90106-KPH-690
Vis
24
90164-028-000
SCREW, U-LOCK FLAT, 6X12
204 ₽/шт
25
90652-KT1-771
BAND, WIRE (BLACK)
244 ₽/шт
26
92101-060-204J
Bolt, hex., 6x20
94 ₽/шт
27
93901-24320
Vis
39 ₽/шт
28
95701-060-1200
Bolt
58 ₽/шт
29
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
30
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
31
98200-41000
Fusible (10A)
58 ₽/шт
32
98200-41500
Fusible (15A)
58 ₽/шт
33
98200-43000
FUSE, MINI (30A)
83 ₽/шт
