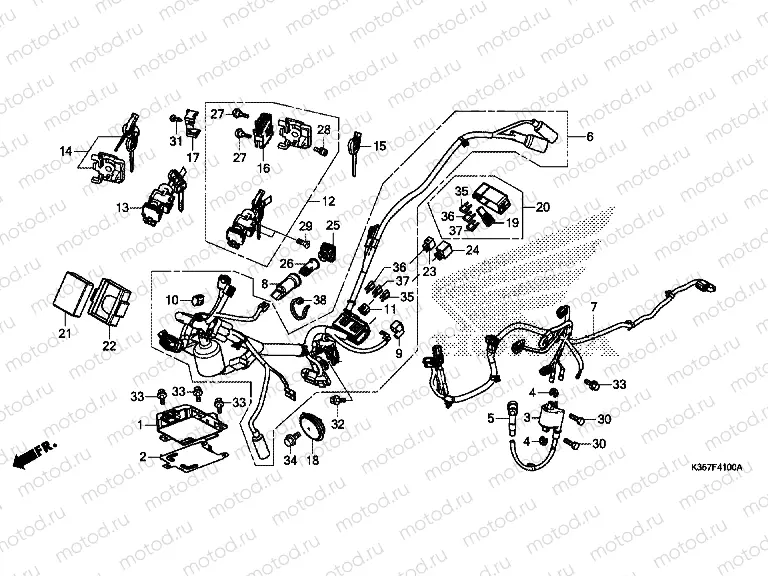

F-41 WIRING HARNESS

F-41 WIRING HARNESS
Например: 30400-K35-T01
1
30400-K35-T01
ENG CONTROL UNIT
2
30401-K35-V00
COVER, ENGINE CONTROL UNI
1 132 ₽/шт
3
30510-K35-V01
Bobine d'allumage
5 375 ₽/шт
4
30520-GFM-900
SPACER, IGNITION COIL
307 ₽/шт
5
30700-KWN-981
Spark plug cap
1 691 ₽/шт
6
32100-K35-T01
Harness wire
7
32104-K35-V00
SUB HARNESS, ENGINE
10 693 ₽/шт
8
32107-K04-930
COVER, ACCESSORY SOCKET
535 ₽/шт
9
32412-MV4-000
COVER, BATTERY TERMINAL
409 ₽/шт
10
32605-GEV-761
CAP, DUMMY (WPC 4P 090 M)
456 ₽/шт
11
32606-GEV-761
CAP, DUMMY (4P) (RED)
456 ₽/шт
12
35100-K35-V01
SWITCH ASSY., COMBINATION
18 930 ₽/шт
13
35101-K35-V01
SWITCH COMP., COMBINATION
6 430 ₽/шт
14
35110-K35-V02
SHUTTER KEY
7 095 ₽/шт
15
35121-K35-V00
Clé Vierge
16
35190-K35-V02
SWITCH ASSY., FUEL LID &
2 977 ₽/шт
17
35191-K27-V01
COVER, CABLE
354 ₽/шт
18
38120-KWN-711
HORN COMP(LOW)
4 884 ₽/шт
19
38235-SNA-A01
PULLER, MINI FUSE
275 ₽/шт
20
38255-K35-V01
COVER COMP. UPPER
896 ₽/шт
21
38300-K35-V32
LED CONTROL UNIT
22
38301-K35-V00
SUSPENSION LED CONT
865 ₽/шт
23
38501-KVZ-631
RELAY ASSY., POWER (MICRO
1 211 ₽/шт
24
38502-KWN-701
RELAY COMP., POWER (5P) (
3 035 ₽/шт
25
39620-K12-901
CAP ASSY.
535 ₽/шт
26
39624-SZ3-L01
OCKET ASSY.
27
90101-MT4-000
Vis
157 ₽/шт
28
90111-MR5-000
Vis
181 ₽/шт
29
90164-KZL-A00
SCREW, U-LOCK FLAT, 6X12
157 ₽/шт
30
92101-060-204J
Bolt, hex., 6x20
94 ₽/шт
31
93901-24320
Vis
39 ₽/шт
32
95701-060-1200
Bolt
58 ₽/шт
33
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
34
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
35
98200-40500
Fusible (5A)
55 ₽/шт
36
98200-41000
Fusible (10A)
58 ₽/шт
37
98200-42500
Fusible (25A)
79 ₽/шт
38
90652-KT1-771
BAND, WIRE (BLACK)
244 ₽/шт
