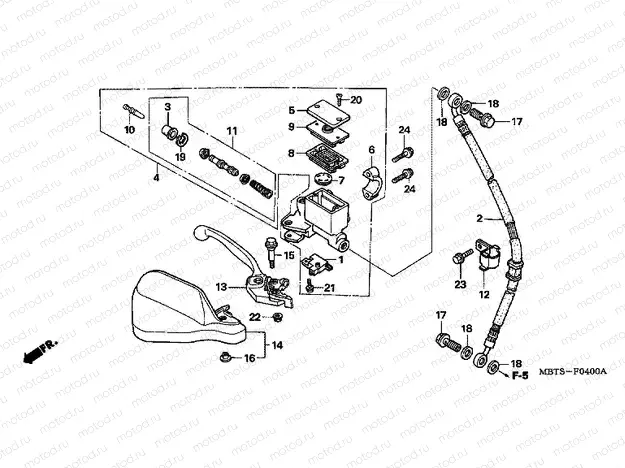

F-4 FRONT MASTER CYLINDER (XL1000V)

F-4 FRONT MASTER CYLINDER (XL1000V)
Например: 35340-MM5-600
1
35340-MM5-600
Commutateur de feu-stop
1 792 ₽/шт
2
45124-MBT-D11
HOSE, FR. BRAKE
8 229 ₽/шт
3
45504-410-003
BOOT COMP.
771 ₽/шт
4
45510-MBT-611
CYLINDER SUB ASSY., FR. M
20 375 ₽/шт
5
45513-KK1-771
CAP, MASTER CYLINDER
6
45517-166-006
HOLDER, MASTER CYLINDER
1 255 ₽/шт
7
45518-MG3-016
SEPARATOR COMP.
708 ₽/шт
8
45520-MG7-006
DIAPHRAGM
739 ₽/шт
9
45521-HA2-006
PLATE, DIAPHRAGM
802 ₽/шт
10
45525-MAJ-G41
ROD, PUSH
1 840 ₽/шт
11
45530-MAJ-G41
Kit de réparation pour de frein
3 597 ₽/шт
12
52115-MBT-D10
CLAMPER, BRAKE HOSE
13
53170-MAT-E01
Levier de frein
5 660 ₽/шт
14
53180-MBT-D20ZA
GUARD, R. KNUCKLE *NH1 *
15
90114-MN9-006
BOLT, HANDLE LEVER
456 ₽/шт
16
90127-KF0-770
COLLAR, 6X4
289 ₽/шт
17
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
18
90545-300-000
Rondelle
291 ₽/шт
19
90651-MA5-671
CIRCLIP
275 ₽/шт
20
93600-040-120G
ВИНТ
39 ₽/шт
21
93893-040-1207
Screw-washer
61 ₽/шт
22
94050-06000
Nut
55 ₽/шт
23
95701-060-1207
Bolt
58 ₽/шт
24
96001-060-2207
Болт
96 ₽/шт
