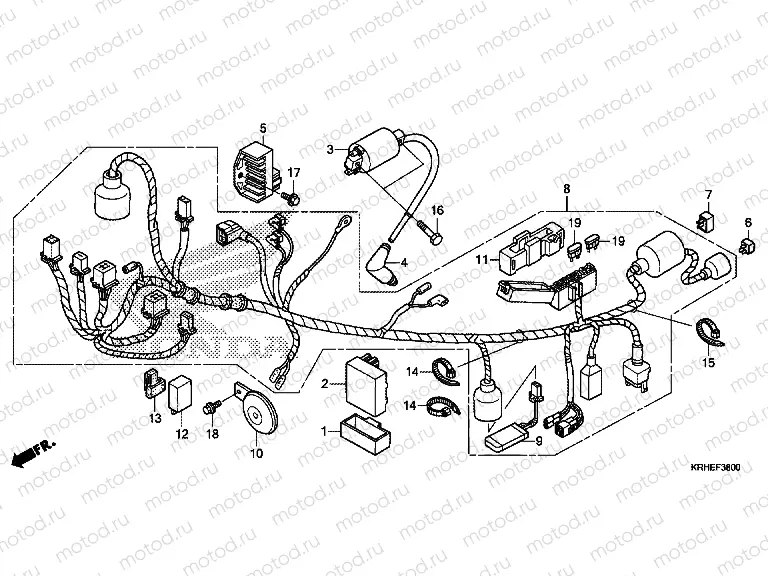

F-38 WIRING HARNESS (XR125LEK)

F-38 WIRING HARNESS (XR125LEK)
Например: 30401-KRH-781
1
30401-KRH-781
CUSHIONCDI UNIT
2
30410-KRH-A01
UNIT COMP,DIGITAL
3
30500-KRH-781
Bobine d'allumage
4
30700-KRH-901
Spark plug cap
5
31600-KRH-781
égulateur de tension
7
31700-KVX-701
RECTIFIER ASSY., SILICON
8
32100-KRH-A00
NESS WIRE
9
35250-KRH-901
SW ASSYTHERMO
10
38110-KRH-901
ORN COMP. (HIGH)
11
38201-KRH-901
SUSPENSIONFUSE C
12
38301-KRH-901
elais clignotant
13
38306-KRH-901
SUSPENSION WINKER
14
90650-KW3-000
BAND, WIRE
303 ₽/шт
16
92101-060-200A
Bolt
944 ₽/шт
17
95701-060-1400
Bolt
55 ₽/шт
18
95701-080-1207
Bolt, flange, 8x12
63 ₽/шт
19
98200-41000
Fusible (10A)
58 ₽/шт
