Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA NT 650 Deauville HONDA NT650V5 Deauville 2005 HONDA (VIN: VTMRC47A) F-36-2 J. SADDLE BAG (NT650V2 / 3/4/5)

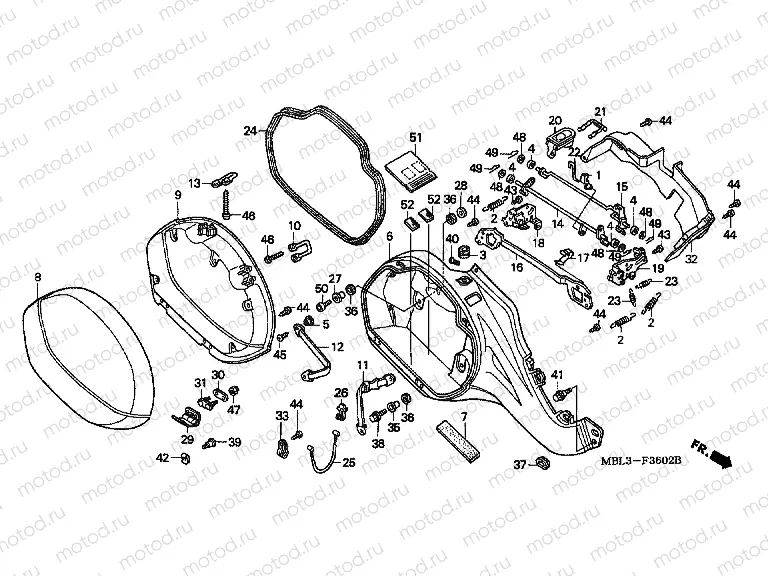

F-36-2 J. SADDLE BAG (NT650V2 / 3/4/5)

F-36-2 J. SADDLE BAG (NT650V2 / 3/4/5)

Например: 16263-ZJ4-003

1

16263-ZJ4-003

OINT, ROD

2

16534-ZJ1-U80

SPRING, RETURN

3

33606-428-610

RUBBER, WINKER BOLT MOUNT

432 ₽/шт

4

50618-KE8-000

COLLAR, 6.5X11X3

259 ₽/шт

5

61102-329-300

COLLAR, RIVETING

307 ₽/шт

6

77220-MBL-D00ZL

COWL, R. SEAT *R296M *

7

77223-MBL-D00

GUARDHEAT

8

77227-MBL-D00ZL

ID, R. SADDLEBAG *R296M

9

77228-MBL-D00

INNER LID, R. SADDLEBAG

10

77239-MBL-D00

AR A, SADDLEBAG LID LOCK

11

77240-MBL-D00

AND COMP. A, SADDLEBAG

12

77245-MBL-D00

AND COMP. B, SADDLEBAG

13

77249-MBL-D00

AR B, SADDLEBAG LID LOCK

14

77252-MBL-610

CAM, R. SADDLEBAG CATCH S

15

77253-MBL-610

CAM, R. SADDLEBAG CATCH T

16

77256-MBL-610

PLATE, R. SADDLEBAG CATCH

17

77257-MBL-D00

PLATE, SADDLEBAG CATCH ST

18

77258-MBL-610

PLATE COMP. A, R. SADDLEB

19

77259-MBL-610

PLATE COMP. B, R. SADDLEB

20

77260-MBL-D00

EVER COMP., COWL LID OPE

21

77265-MBL-610

SPRING, LID OPENER SETTIN

22

77266-MBL-D00

RODOPEN

23

77269-MBL-610

SPRING, RETURN

24

77270-MBL-D00

RUBBER, SADDLEBAG SEAL

2 902 ₽/шт

25

77280-MBL-D00

ID STOPPER

26

77285-MBL-D00

STAYSTOPPER CABL

27

77288-MBL-610

COLLAR, SADDLEBAG MOUNTIN

385 ₽/шт

28

77289-MBL-610

WASHER, SADDLEBAG MOUNTIN

29

77295-MBL-D00

HINGE COMP., SADDLEBAG

30

77301-MBL-D00

RUBBER, SADDLEBAG HINGE

31

77302-MBL-D00

PLATE ASSY., SADDLEBAG HI

32

77360-MBL-D00

COVERR SADDLEBAG

33

81254-MN5-000

STAY B, LID STOPPER

315 ₽/шт

35

81355-MN5-000

COLLAR, SADDLEBAG MOUNTIN

464 ₽/шт

36

81356-MN5-000

RUBBER, BAG MOUNT

173 ₽/шт

37

83551-MA6-000

GROMMET, SIDE COVER

381 ₽/шт

38

90085-MAJ-A20

Vis (spec)

259 ₽/шт

39

90104-MBL-D00

Vis (spec)

280 ₽/шт

40

90109-SB6-000

Vis (5x16)

223 ₽/шт

41

90116-ME9-000

Vis

244 ₽/шт

42

90677-KAN-T00

Clip nuts (5 mm)

338 ₽/шт

43

93901-25180

Vis

39 ₽/шт

44

93903-25280

Vis

39 ₽/шт

45

93903-25380

Vis (5x16)

44 ₽/шт

46

93903-25780

Vis

47 ₽/шт

47

94021-050-000S

Nut, cap, 5mm

47 ₽/шт

48

94101-06000

Rondelle (M6)

39 ₽/шт

49

94251-06000

PIN, LOCK, 6MM

47 ₽/шт

50

96600-060-4007

Bolt, socket (6x40)

79 ₽/шт

51

83642-MBL-D60

AGOWNERS MANUAL

52

83643-MBL-D60

AGIC TAPEFEMALE
