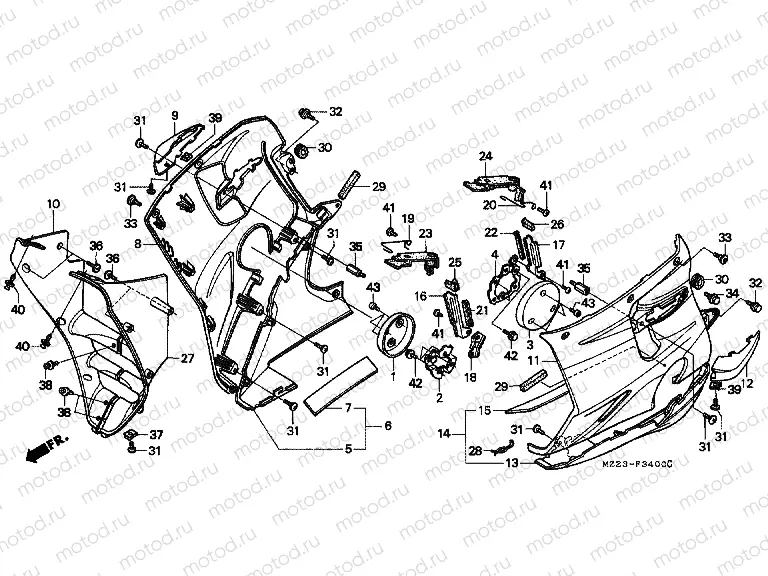

F-34 LOWER ENGINE

F-34 LOWER ENGINE
Например: 11313-MZ2-000
1
11313-MZ2-000
PROTECTOR COMP., R. CRANK
2
11315-MS2-000
TAY, R. COVER PROTECTOR
3
11323-MZ2-000
PROTECTOR COMP., L. CRANK
4
11325-MS2-000
TAY, L. COVER PROTECTOR
2 105 ₽/шт
6
64310-MZ2-750ZA
Cowl, r. *nh206m*
23 196 ₽/шт
7
64311-MS2-670
HEETR.UNDER COW
8
64325-MZ2-000ZB
SET ILLUS*TYPE13*
9
64328-MZ2-000ZC
Protector, r. *nh1*
3 620 ₽/шт
11
64365-MZ2-000ZB
COWL SET*TYPE13** NLA**
12
64368-MZ2-000ZC
PROTECTOR, L. MIDDLE COWL
14
64370-MZ2-750ZA
Cowl, l. *nh206m*
23 196 ₽/шт
15
64371-MS2-670
HEETL.UNDER COW
16
64402-MS2-000
EPARATER.MIDDLE
17
64403-MS2-000
EPARATOR, L. MIDDLE COWL
18
64404-MM4-000
STAYR.MIDDLE COW
19
64406-MS2-000
WIRER.SEPARATE R
20
64407-MS2-000
WIREL.SEPARATE R
21
64408-MS2-000
RUBBERR.MIDDLE C
22
64409-MS2-000
RUB L MID COWL SE
23
64411-MS2-000
RUBBER AR.
24
64412-MS2-000
RUBBER A, L. MIDDLE COWL
25
64413-MS2-000
RUBBER BR.
26
64414-MS2-000
RUBBER B, L. MIDDLE COWL
28
64535-ML7-000
SPRING, COWL SETTING
29
81240-MZ2-300
RUBBERSEAL
30
83551-MA6-000
GROMMET, SIDE COVER
381 ₽/шт
31
90001-MN8-000
Vis (spec)
336 ₽/шт
32
90111-162-000
Vis
338 ₽/шт
33
90113-MM5-000
Vis
204 ₽/шт
35
90122-MZ2-000
BOLT MIDD.COWL ** NLA**
36
90133-SD4-000
CREW, TRUSS
104 ₽/шт
37
90312-MT3-000
Clip nuts (5 mm)
283 ₽/шт
38
90657-SB0-003
Rivet - panel fixing
228 ₽/шт
39
90677-GR1-003
Clip nuts (5 mm)
307 ₽/шт
40
90683-GR1-003
ivet - panel fixing
212 ₽/шт
41
93500-060-100A
Screw, pan, 6x10
47 ₽/шт
42
95701-060-1200
Bolt
58 ₽/шт
43
96600-060-1007
Bolt, socket (6x10)
63 ₽/шт
