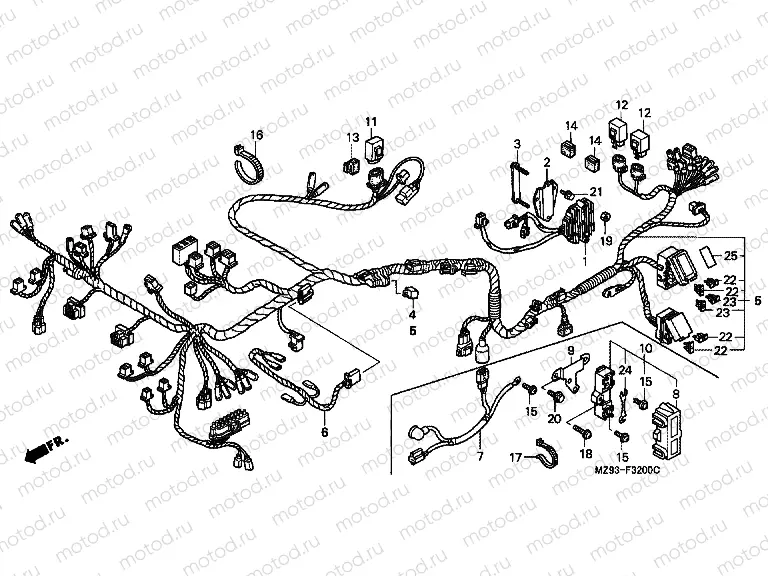

F-32 WIRING HARNESS

F-32 WIRING HARNESS
Например: 31700-196-000
4
31700-196-000
RECTIFIER COMP., SILICON
2 162 ₽/шт
5
32100-MAJ-B00
Harness wire
67 621 ₽/шт
6
32120-MT3-000
SUB HARNESSIGNIT
7
32130-MAJ-G40
SUB HARNESSACG ** NLA**
8
38255-MAJ-G40
COVER, MAIN FUSE BOX
475 ₽/шт
9
38260-MAJ-G20
STAY FUSE BOXB
10
38270-MAJ-G40
BOX ASSY., MAIN FUSE
1 546 ₽/шт
11
38301-KK9-952
Relais clignotant
5 303 ₽/шт
12
38301-KK9-952
Relais clignotant
5 303 ₽/шт
13
38306-GE7-000
SUSPENSION, WINKER RELAY
495 ₽/шт
14
38306-KK4-000
SUSPENSION, WINKER RELAY
291 ₽/шт
15
90153-SB2-003
Vis
193 ₽/шт
16
90650-MA6-720
BAND, WIRE HARNESS
307 ₽/шт
17
90651-MA6-720
BAND, WIRE HARNESS
315 ₽/шт
18
93891-060-1608
Screw-washer
55 ₽/шт
20
95701-060-1200
Bolt
58 ₽/шт
22
98200-31000
Fusible (10A)
55 ₽/шт
23
98200-32000
Fusible (20A)
55 ₽/шт
24
98200-65500
Fusible (55A)
94 ₽/шт
25
38215-MT3-300
LABELFUSE
329 ₽/шт
