Главная Каталог товаров HONDA EPC 1100 cm³ - HONDA CMX 1100 REBEL HONDA CMX1100DP CMX1100 2023 HONDA F-32 SWINGARM

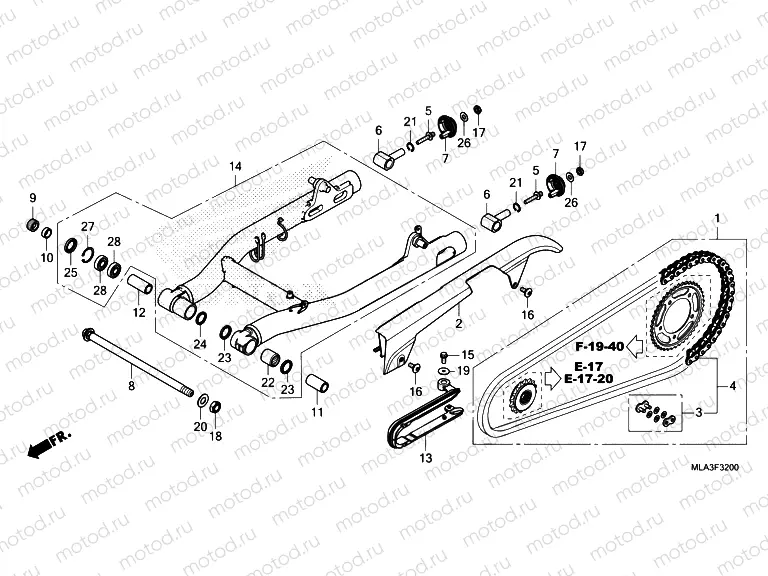

F-32 SWINGARM

F-32 SWINGARM
Например: 06406-MLA-D00
1
06406-MLA-D00
CHAIN KIT, DRIVE (525-16& (Standard original)
2
40510-MLA-A00
CASE, DRIVE CHAIN
3
40531-MLA-A02
JOINT, DRIVE CHAIN (RK JA
4
40540-MLA-A02
CHAIN, DRIVE (RK JAPAN) (
5
40542-K87-A00
BOLT, CHAIN ADJUSTING
519 ₽/шт
6
40543-MLA-A00
DJUSTER COMP., CHAIN
7
40546-MLA-A00
CAP, SWINGARM END
8
52101-MLA-A00
BOLT, SWINGARM PIVOT
9
52109-MLA-A00
BOLT, PIVOT ADJUSTING
10
52141-MKS-E00
COLLAR A, PIVOT
11
52142-MLA-A00
COLLAR, L. PIVOT DISTANCE
12
52143-MLA-A00
COLLAR, R. PIVOT DISTANCE
13
52170-MLA-A00
SLIDER, CHAIN
14
52200-MLA-A00
SWINGARM SUB ASSY., RR.
15
90013-GHB-620
Vis
204 ₽/шт
16
90118-MJK-N20
Vis (spec)
244 ₽/шт
17
90301-MLA-A01
NUT, U, 10MM
18
90305-GW2-711
Nut
958 ₽/шт
19
90404-GE2-760
Rondelle (6 mm)
236 ₽/шт
20
90501-K87-A00
WASHER, PLAIN, 16.4X32X2
338 ₽/шт
21
90651-K87-A00
CIRCLIP, INTERNAL, 20MM
275 ₽/шт
22
91071-MT7-003
Needle bearing
876 ₽/шт
23
91202-MAL-601
DUST SEAL, 25X33X4
456 ₽/шт
24
91203-GC8-003
Joint
771 ₽/шт
25
91214-MAL-601
DUST SEAL, 23X35X5
503 ₽/шт
26
94101-10700
Rondelle (10 mm)
55 ₽/шт
27
94520-35000
Seeger (35mm)
96 ₽/шт
28
96100-600-3010
Bearing (6003)
676 ₽/шт
