Главная Каталог товаров HONDA EPC 1100 cm³ - HONDA VFR 1200 X Crosstourer HONDA VFR1200XF VFR1200X 2015 HONDA (VIN: JH2SC70A) F-32 SWING ARM

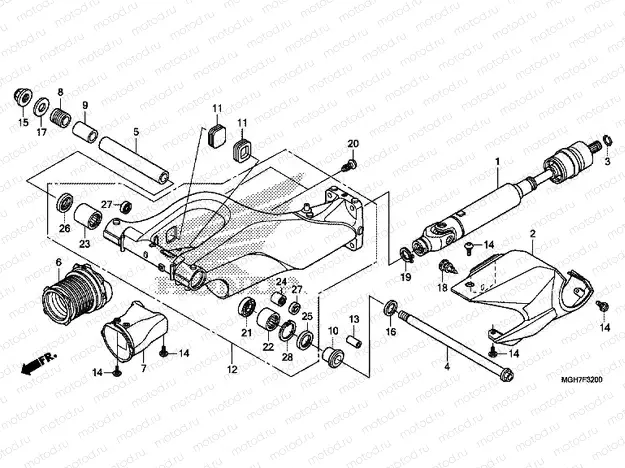

F-32 SWING ARM

F-32 SWING ARM
Например: 40200-MGE-023
1
40200-MGE-023
SHAFT ASSY., PROPELLER
142 897 ₽/шт
2
41351-MGE-000
COVER, FINAL GEAR
4 581 ₽/шт
3
44319-SC2-003
ET RING, 24X1.6
4
52101-MGE-000
BOLT, SWINGARM PIVOT
6 882 ₽/шт
5
52102-MGE-000
COLLAR, SWINGARM PIVOT
1 900 ₽/шт
6
52104-MGE-000
BOOT, JOINT
2 595 ₽/шт
7
52105-MGE-000
COVER, PROPELLER SHAFT
2 543 ₽/шт
8
52109-MGE-000
BOLT, PIVOT ADJUSTING
2 305 ₽/шт
9
52143-MGE-000
COLLAR, R. PIVOT DISTANCE
1 647 ₽/шт
10
52144-MFL-000
COLLAR, R. PIVOT DISTANCE
1 590 ₽/шт
11
52175-MGE-000
ROMMET, SWINGARM
353 ₽/шт
12
52200-MGH-D50
SWINGARM SUB ASSY.
13
52463-MBT-D20
Entretoise
1 006 ₽/шт
14
90113-MGE-000
Vis (spec)
291 ₽/шт
15
90306-MFL-D31
NUT, U, 22MM
1 748 ₽/шт
16
90501-MGE-000
WASHER, 26X41X3
17
90502-MGE-000
WASHER, 22.2X44X3
18
90652-MGE-003
RIVET, PUSH PULL
259 ₽/шт
19
90654-MGE-000
CIRCLIP, SPECIAL, 26MM
627 ₽/шт
20
90656-MGE-003
PLUG, HOLE
142 ₽/шт
21
91053-MCJ-003
Roulement
1 525 ₽/шт
22
91053-MCJ-751
Needle bearing (32x42x20)
3 165 ₽/шт
23
91071-MCJ-003
Needle bearing (32x42x37)
1 748 ₽/шт
24
91072-MY1-005
Needle bearing (20x26x20)
1 400 ₽/шт
25
91252-MCF-003
DUST SEAL, 32X45X5
723 ₽/шт
26
91253-MCF-003
DUST SEAL, 32X42X6
692 ₽/шт
27
91254-KS6-003
DUST SEAL, 20X26X4.5 (ARA
692 ₽/шт
28
94520-45000
Seeger (45mm)
110 ₽/шт
