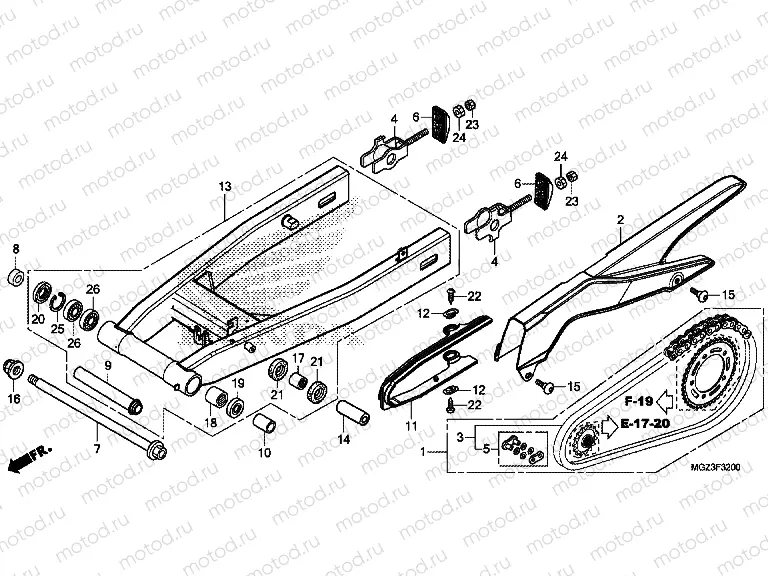

F-32 SWING ARM

F-32 SWING ARM
Например: 06406-MGZ-D01
1
06406-MGZ-D01
CHAIN KIT, DRIVE (520-15& (Standard original)
2
40510-MGZ-J00
CASE, DRIVE CHAIN
7 138 ₽/шт
3
40540-MGS-D31
CHAIN, DRIVE (DAIDO) (DID
18 359 ₽/шт
4
40543-MGZ-J00
ADJUSTER COMP., CHAIN
1 633 ₽/шт
5
40545-MGS-D31
JOINT, DRIVE CHAIN (DAIDO
975 ₽/шт
6
40546-MGZ-J00
CAP, SWINGARM END
1 792 ₽/шт
7
52101-MGZ-J00
BOLT, SWINGARM PIVOT
3 121 ₽/шт
8
52105-MJ0-000
COLLAR B, RR. FORK PIVOT
437 ₽/шт
9
52141-MGZ-J00
COLLAR, CENTER PIVOT DIST
1 633 ₽/шт
10
52143-MGZ-J00
COLLAR, L. PIVOT DISTANCE
1 211 ₽/шт
11
52170-MGZ-J00
uard chain sliding shoe
3 121 ₽/шт
12
52171-KR6-000
WASHER, CHAIN SLIDER
228 ₽/шт
13
52200-MGZ-J00
SWINGARM SUB ASSY., RR.
90 024 ₽/шт
14
52463-MGZ-J00
COLLAR, CUSHION CONNECTIN
975 ₽/шт
15
90115-MGZ-J00
Vis (spec)
259 ₽/шт
16
90305-KCJ-951
NUT, U, 14MM (FUJI SEIMIT
487 ₽/шт
17
91071-KV3-005
Needle bearing
1 003 ₽/шт
18
91071-MT7-003
Needle bearing
876 ₽/шт
19
91202-MAL-601
DUST SEAL, 25X33X4
456 ₽/шт
20
91213-MB2-003
DUST SEAL, 22X35X7 (ARAI)
605 ₽/шт
21
91262-KV3-831
DUST SEAL, 17X24X5 (ARAI)
425 ₽/шт
22
93901-25280
Vis
41 ₽/шт
23
94002-080-000S
Гайка
47 ₽/шт
24
94030-08000
Nut
47 ₽/шт
25
94520-35000
Seeger (35mm)
96 ₽/шт
26
96100-620-2010
ПОДШИПНИК ВЫЖИМНОЙ
546 ₽/шт
