Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CBF 500 HONDA CBF5004 CBF500 2004 HONDA (VIN: ZDCPC39C) F-32 RADIATOR

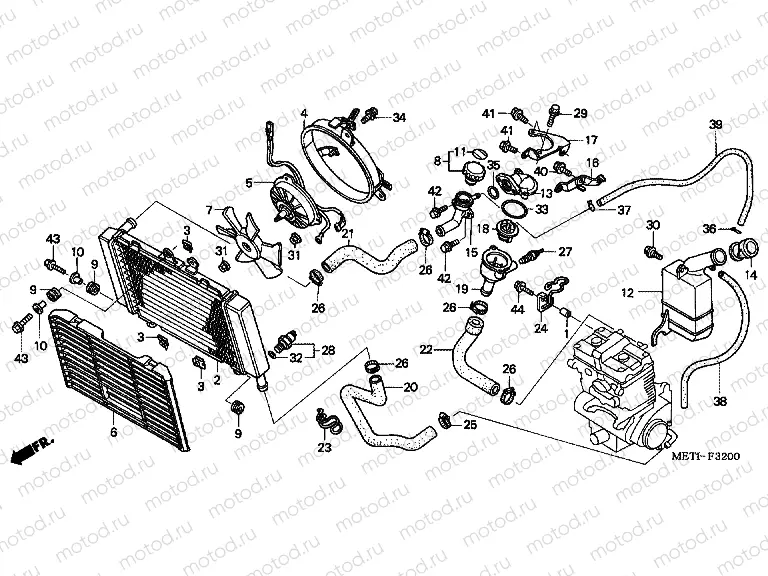

F-32 RADIATOR

F-32 RADIATOR
Например: 17272-ZC3-300
1
17272-ZC3-300
OLLAR, IN. JOINT
2
19010-MET-642
Radiateur - refroidisseur d’eau
3
19014-KEA-003
NUT, SETTING (6MM)
239 ₽/шт
4
19015-MET-641
SHROUD COMP.
5
19030-MET-641
OTOR ASSY., FAN
27 227 ₽/шт
6
19032-MET-640
GRILLE, RADIATOR
7
19040-MF5-751
AN, COOLING (T.RAD)
4 612 ₽/шт
8
19045-MY3-621
CAP COMP., RADIATOR
2 760 ₽/шт
9
19051-KA3-830
Damper (Radiator)
307 ₽/шт
10
19052-MGH-640
Entretoise
228 ₽/шт
11
19055-MV9-881
Autocollant
502 ₽/шт
12
19101-MER-D00
TANK, RADIATOR RESERVE
13
19103-MET-640
CAP, THERMOSTAT
14
19104-MB0-700
CAP, RESERVE TANK
843 ₽/шт
15
19106-MN8-000
ECK, FILLER
7 442 ₽/шт
16
19120-MET-640
STAY A, THERMOSTAT CASE
17
19125-MET-640
STAY B, THERMOSTAT CASE
18
19300-ML7-003
Thermostat
5 539 ₽/шт
19
19311-MET-640
hermostat cover
5 189 ₽/шт
20
19501-MET-640
Durite radiateur (radiator lower)
1 961 ₽/шт
21
19502-MET-640
Durite radiateur (radiator upper)
1 409 ₽/шт
22
19503-MET-640
Durite radiateur
1 494 ₽/шт
23
19505-MET-640
CLAMPERRAD LWR.
24
19507-MET-640
CLAMPERRADIATOR
25
19516-GAG-003
Collier (30-37 mm)
1 003 ₽/шт
26
19516-ML7-691
Collier
849 ₽/шт
27
37750-PC1-004
THERMO UNIT (DENSO)
4 523 ₽/шт
28
37760-MT2-003
Water temperature switch
5 534 ₽/шт
29
90001-GZ9-000
Vis
244 ₽/шт
30
90111-162-000
Vis
338 ₽/шт
31
90315-MK3-003
NUT, SERRATE, 5MM
215 ₽/шт
32
91214-ZM3-003
OIL SEAL, 15X25X6
33
91311-KE8-000
O-Ring
259 ₽/шт
34
93401-060-1408
Bolt-washer
55 ₽/шт
35
94608-30000
O-Ring
104 ₽/шт
36
95002-02100
Collier
55 ₽/шт
37
95002-02120
Collier
55 ₽/шт
38
95005-556-0020S
*95005-55003-20m
645 ₽/шт
39
95005-550-0120M
Bulk hose,tb 55x1
991 ₽/шт
40
95701-060-1008
БОЛТ С ФЛАНЦЕМ
60 ₽/шт
41
95701-060-1208
ДЕТАЛЬ
58 ₽/шт
42
96001-060-1600
БОЛТ
63 ₽/шт
43
96001-060-2507
Болт
63 ₽/шт
44
96001-060-2807
Болт
79 ₽/шт
