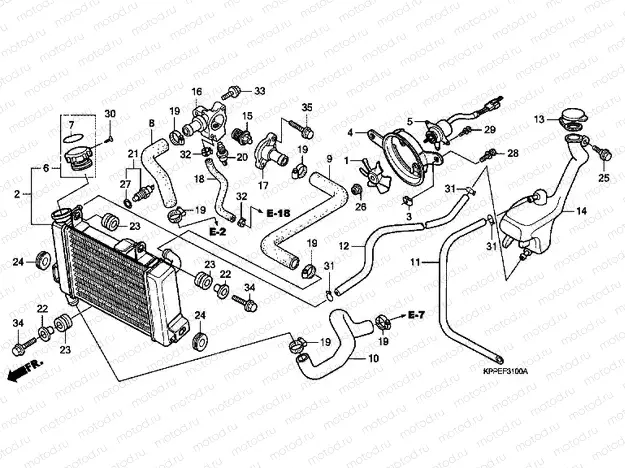

F-31 RADIATOR (CBR125R / RS / RW5 / RW6 / RW8)

F-31 RADIATOR (CBR125R / RS / RW5 / RW6 / RW8)
Например: 19009-KGH-901
1
19009-KGH-901
FAN COMP., COOLING
2
19010-KPP-861
Radiateur - refroidisseur d’eau
3
19014-KEA-003
NUT, SETTING (6MM)
239 ₽/шт
4
19015-KPP-901
SHROUD COMP.
5
19030-KPP-861
MOTOR, COOLING FAN
6
19045-KPC-D51
AP COMP., RADIATOR (T.RA
2 899 ₽/шт
7
19055-KPC-D51
SEAL, RADIATOR CAP
456 ₽/шт
8
19061-KPP-860
HOSE, THERMOSTAT
9
19062-KPP-860
Durite radiateur (radiator upper)
1 936 ₽/шт
10
19063-KPP-900
Durite radiateur (radiator lower)
11
19104-KPP-900
TUBE, RESERVE TANK BREATH
12
19105-KPP-900
TUBE, RADIATOR BREATHER
13
19109-KBP-900
CAP, RESERVE TANK
566 ₽/шт
14
19110-KPP-900
TANK, RADIATOR RESERVE
15
19300-GEE-003
Thermostat
3 688 ₽/шт
16
19311-KPP-860
Thermostat cover
17
19315-KGH-900
Thermostat cover
2 601 ₽/шт
18
19320-KPP-860
TUBE A, THERMOSTAT CASE
19
19506-KGH-900
Collier
849 ₽/шт
20
37750-MAZ-003
THERMO UNIT (DENSO)
3 728 ₽/шт
21
37760-MT2-003
Water temperature switch
5 534 ₽/шт
22
61104-428-010
COLLAR, FR. FENDER (WHITE
432 ₽/шт
23
61304-415-000
RUBBER, HEADLIGHT CASE
315 ₽/шт
24
83551-300-000
Damper
315 ₽/шт
25
90111-162-000
Vis
338 ₽/шт
26
90308-KM3-003
NUT, TOOTHED, 3MM
204 ₽/шт
27
91214-ZM3-003
OIL SEAL, 15X25X6
28
93401-060-1208
Bolt-washer
55 ₽/шт
29
93891-040-0808
Screw-washer
47 ₽/шт
30
93901-22020
Vis
39 ₽/шт
31
95002-02100
Collier
55 ₽/шт
32
95002-410-5008
Clamp
83 ₽/шт
33
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
34
95701-060-2200
Bolt, flange, 6x22
69 ₽/шт
35
96001-060-2500
БОЛТ
79 ₽/шт
