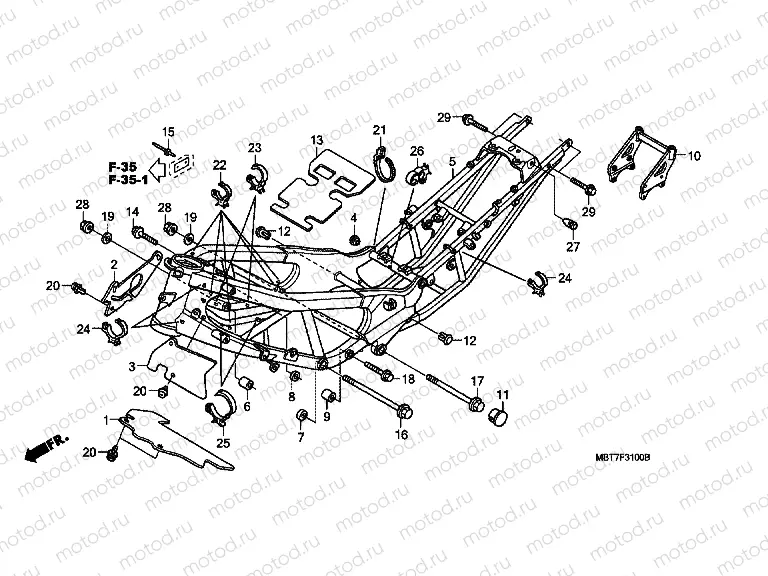

F-31 FRAME HOUSING (XL1000V)

F-31 FRAME HOUSING (XL1000V)

Например: 19125-MBT-D50

1

19125-MBT-D50

GUARD, LOWER HEAT

2

19126-MBT-D70

GUARDHEAT RH

3

19127-MBT-D50

GUARD, L. HEAT

4

42717-329-000

CAP, RIM HOLE

467 ₽/шт

5

50100-MBT-C40

FRAME BODY COMP

6

50190-MBT-D21

COLLAR, R. FR. ENGINE HAN

7

50191-MBT-D21

COLLAR, L. FR. ENGINE HAN

8

50192-MBT-D21

COLLAR, R. RR. ENGINE HAN

9

50193-MBT-D21

COLLAR, L. RR. ENGINE HAN

10

50230-MBT-C40

STAY COMP., CARRIER MOUNT

11

50902-MBT-D20

CAP, L. END

12

50903-MBT-C40

APRR CROSS PIPE

13

80103-MBT-D50

PROTECTOR, HEAT MUDGUARD

14

90003-ZF5-003

Vis

15

90040-GAS-900

RIVET, BLIND, 2.4X7

16

90110-MBT-D21

Vis (spec)

1 900 ₽/шт

17

90115-MBT-D50

Vis (spec)

1 343 ₽/шт

18

90326-SL0-A00

BOLT, 10X97

424 ₽/шт

19

90501-KZ4-J40

Rondelle (12 mm)

275 ₽/шт

20

90684-GM6-003

CLIP ASSY., TRIM

259 ₽/шт

21

90690-GHB-601

CLIP, HARNESS BAND (15)

189 ₽/шт

22

90690-GHB-641

CLIP, CABLE, 10MM

208 ₽/шт

23

90690-GHB-651

CLIP, CABLE, 15MM

189 ₽/шт

24

90690-GHB-661

CLIP, CABLE, 20MM

208 ₽/шт

25

90690-GHB-671

CLIP, CABLE, 25MM

208 ₽/шт

26

90690-GHB-681

CLIP, CABLE, 30MM

189 ₽/шт

27

90899-422-610

PLUG, CONE TYPE

291 ₽/шт

28

94050-12000

Nut

86 ₽/шт

29

96300-080-4500

Болт

94 ₽/шт
