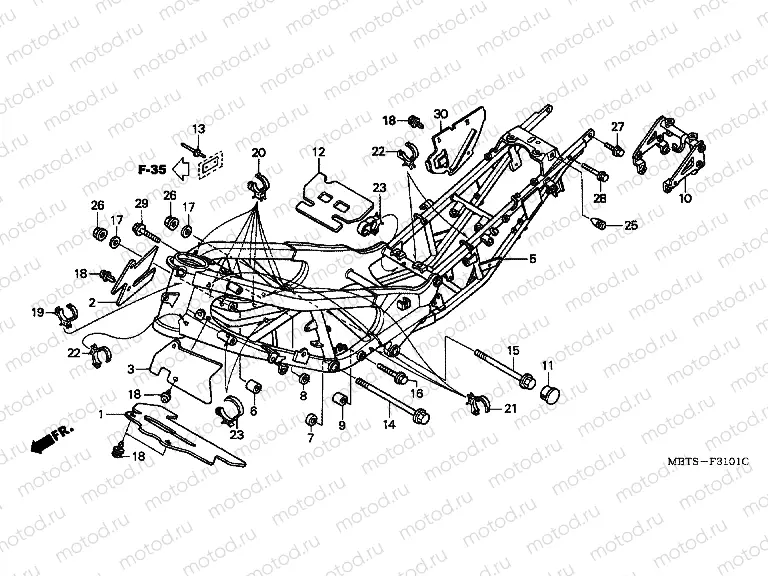

F-31-1 FRAME HOUSING (XL1000VA)

F-31-1 FRAME HOUSING (XL1000VA)
Например: 19125-MBT-D50
1
19125-MBT-D50
GUARD, LOWER HEAT
2
19126-MBT-D51
GUARD, R. HEAT
3
19127-MBT-D50
GUARD, L. HEAT
5
50100-MBT-D51
FRAME BODY COMP
6
50190-MBT-D21
COLLAR, R. FR. ENGINE HAN
7
50191-MBT-D21
COLLAR, L. FR. ENGINE HAN
8
50192-MBT-D21
COLLAR, R. RR. ENGINE HAN
9
50193-MBT-D21
COLLAR, L. RR. ENGINE HAN
10
50230-MBT-D10
STAY COMP., CARRIER
11
50902-MBT-D20
CAP, L. END
12
80103-MBT-D50
PROTECTOR, HEAT MUDGUARD
13
90040-GAS-900
RIVET, BLIND, 2.4X7
14
90110-MBT-D21
Vis (spec)
1 900 ₽/шт
15
90115-MBT-D50
Vis (spec)
1 343 ₽/шт
16
90326-SL0-A00
BOLT, 10X97
424 ₽/шт
17
90501-KZ4-J40
Rondelle (12 mm)
275 ₽/шт
18
90684-GM6-003
CLIP ASSY., TRIM
259 ₽/шт
19
90690-GHB-611
CLIP, HARNESS BAND, 25MM
20
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
21
90690-GHB-651
CLIP, CABLE, 15MM
189 ₽/шт
22
90690-GHB-661
CLIP, CABLE, 20MM
208 ₽/шт
23
90690-GHB-671
CLIP, CABLE, 25MM
208 ₽/шт
25
90899-422-610
PLUG, CONE TYPE
291 ₽/шт
26
94050-12000
Nut
86 ₽/шт
27
96300-080-2000
Болт
79 ₽/шт
28
96300-080-4500
Болт
94 ₽/шт
29
90003-ZF5-003
Vis
30
57407-MBT-D50
COVERRR SIDE INN
