Главная Каталог товаров HONDA EPC 700 cm³ - 1099 cm³ HONDA Shadow 750 HONDA VT750C2F9 Shadow Aero 2009 HONDA (VIN: RC53U) F-30 WIRING HARNESS (VT750C2 / C2F / C2B)

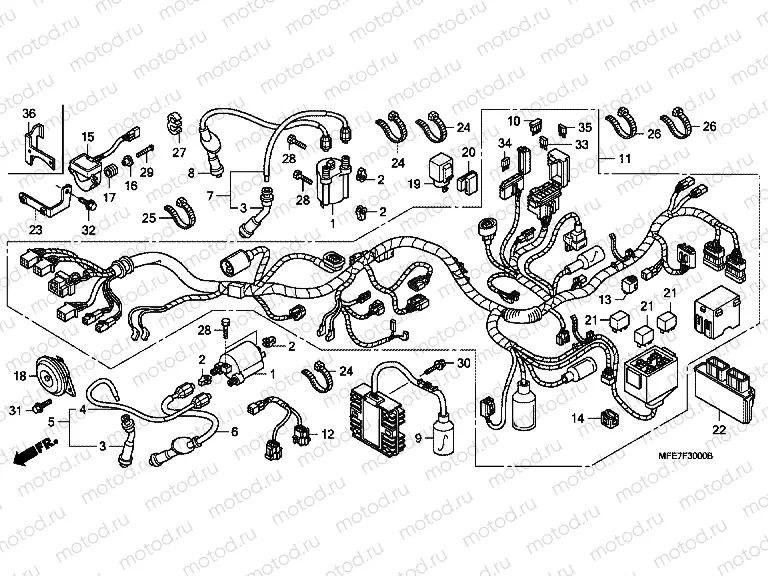

F-30 WIRING HARNESS (VT750C2 / C2F / C2B)

F-30 WIRING HARNESS (VT750C2 / C2F / C2B)

Например: 30510-MCC-003

1

30510-MCC-003

Bobine d'allumage

10 043 ₽/шт

2

30520-ML7-000

SPACER, IGNITION COIL

307 ₽/шт

3

30700-KK6-153

Spark plug cap

1 806 ₽/шт

4

30751-MEG-000

CORD, R. FR. HIGH TENSION

1 242 ₽/шт

5

30771-MEG-000

CORD ASSY., R. FR. HIGH

2 457 ₽/шт

6

30772-MEG-000

CORD ASSY., L. FR. HIGH

2 572 ₽/шт

7

30773-MFE-641

CORD ASSY., L. RR. HIGH

2 789 ₽/шт

8

30774-MFE-641

CORD ASSY., R. RR. HIGH

3 035 ₽/шт

9

31600-MFE-641

Régulateur de tension

17 774 ₽/шт

10

31730-MAS-601

DIODE ASSY., THREE WAY (S

1 194 ₽/шт

11

32100-MFE-640

Harness wire

78 990 ₽/шт

12

32105-MFE-640

SUB HARNESSTH.BO

13

32606-GEV-761

CAP, DUMMY (4P) (RED)

456 ₽/шт

14

32606-MEL-D01

CAP, DUMMY (6P) (NATURAL)

660 ₽/шт

15

35161-MFE-644

SENSOR COMP., BANK ANGLE

11 519 ₽/шт

16

35162-MN5-003

Entretoise

456 ₽/шт

17

35163-MN5-003

GROMMET

236 ₽/шт

18

38110-KB1-921

HORN COMP. (HIGH)

6 271 ₽/шт

19

38301-MEG-000

Relais clignotant (mitsuba)

3 988 ₽/шт

20

38306-GE7-000

SUSPENSION, WINKER RELAY

495 ₽/шт

21

38501-MEL-003

RELAY ASSY., POWER (MICRO

1 148 ₽/шт

22

38770-MFE-642

PGM-FI UNIT

80 037 ₽/шт

23

50128-MFE-640

STAYBANK SENSOR

24

90620-SB2-003

AND, WIRE HARNESS

566 ₽/шт

25

90651-KV6-003

BAND, WIRE, 165MM (BLACK)

311 ₽/шт

26

90652-KT1-771

BAND, WIRE (BLACK)

244 ₽/шт

27

90658-ZA0-930

CLIP, HIGH TENSION CORD

28

92101-060-204J

Bolt, hex., 6x20

94 ₽/шт

29

93500-040-200A

Screw, pan, 4x20

39 ₽/шт

30

95701-060-2000

Bolt

55 ₽/шт

31

95701-080-1207

Bolt, flange, 8x12

63 ₽/шт

32

96001-060-1000

Bolt

63 ₽/шт

33

98200-41000

Fusible (10A)

58 ₽/шт

34

98200-41500

Fusible (15A)

58 ₽/шт

35

98200-42000

Fusible (20A)

58 ₽/шт
