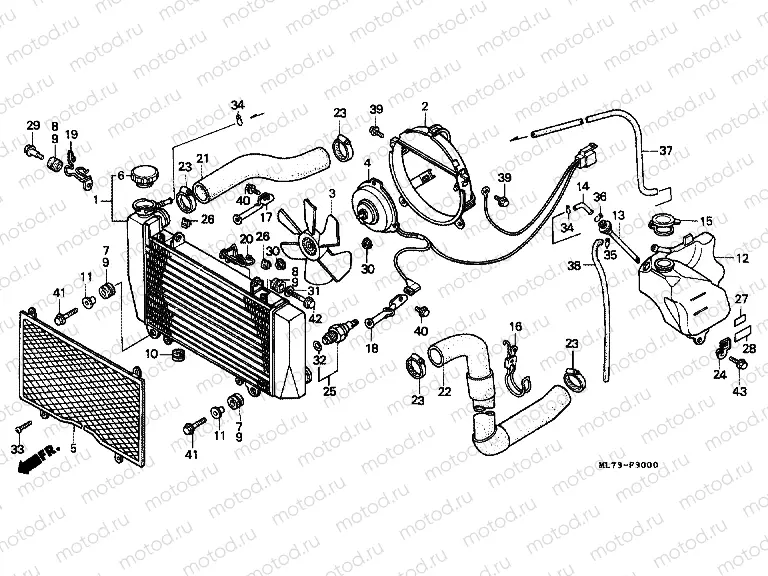

F-30 RADIATOR

F-30 RADIATOR
Например: 19010-ML7-701
1
19010-ML7-701
Radiateur - refroidisseur d’eau
2
19015-ML7-003
SHROUD COMP
3
19020-MG8-003
FAN COMP., COOLING
5 073 ₽/шт
4
19030-ML7-024
OTOR FAN
5
19032-ML7-700
GRILLRADIATOR
6
19045-MZ1-621
CAP COMP., RADIATOR
3 839 ₽/шт
9
19052-HA2-000
RUBBER B, RADIATOR MOUNTI
10
19053-MB2-000
GROMMET, RADIATOR
322 ₽/шт
11
19056-HA2-000
COLLAR B, RADIATOR MOUNTI
535 ₽/шт
12
19101-ML7-000
TANK RESERVE
13
19102-ML7-701
TUBE, LEVEL
723 ₽/шт
14
19103-ML7-000
JOINT, TUBE
409 ₽/шт
15
19104-MB0-700
CAP, RESERVE TANK
843 ₽/шт
16
19120-ML7-000
STAYWATER HOSE
17
19130-ML7-000
STAY R RAD UNDER
18
19131-ML7-000
STAY RAD L UND (LH lower)
19
19140-ML7-000
CLAMP R OIL HOSE
20
19145-ML7-000
CLAMPL.OIL HOSE
21
19500-ML7-000
Durite radiateur (radiator upper)
22
19501-ML7-000
Durite radiateur (radiator lower)
23
19516-GAG-003
Collier (30-37 mm)
1 003 ₽/шт
24
19517-ML7-000
CLAMPHARNESS COR
25
37760-MT2-003
Water temperature switch
5 534 ₽/шт
28
87507-MB4-670
LABEL,RESERV TANK
29
90119-ML7-000
Vis (spec)
30
90315-MK3-003
NUT, SERRATE, 5MM
215 ₽/шт
32
91214-ZM3-003
OIL SEAL, 15X25X6
33
93500-040-100A
Болт
39 ₽/шт
34
95002-02100
Collier
55 ₽/шт
35
95002-70000
CLIP, TUBE (C11)
50 ₽/шт
36
95002-80000
CLIP, TUBE (C12)
47 ₽/шт
37
95005-558-0020
TUBE, 5.3X800 (95005-5500
38
95005-706-0030
TUBE 7X600
39
96001-060-1000
Bolt
63 ₽/шт
40
96001-060-1200
БОЛТ
69 ₽/шт
41
96001-060-2800
БОЛТ
79 ₽/шт
42
96001-060-4007
Болт
79 ₽/шт
43
96300-060-1400
Болт
66 ₽/шт
