Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CB 500 Twin HONDA CB500R CB500 1994 HONDA (VIN: JH2PC269, PC26, PC27) F-30 RADIATOR

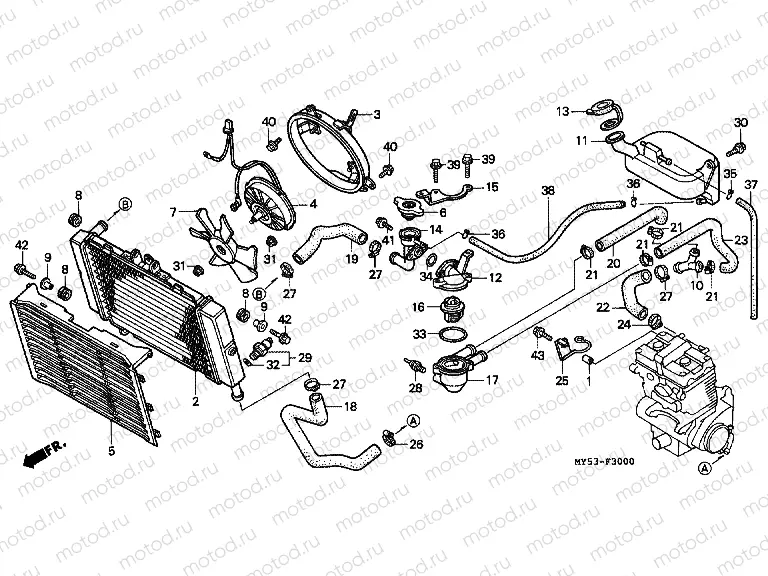

F-30 RADIATOR

F-30 RADIATOR

Например: 17272-ZC3-300

1

17272-ZC3-300

OLLAR, IN. JOINT

2

19010-MY5-611

Radiateur - refroidisseur d’eau

68 219 ₽/шт

3

19015-MY5-611

SHROUD COMP.

4

19030-MY5-611

OTOR ASSYFAN

27 377 ₽/шт

5

19032-MY5-860

GRILLE, RADIATOR

6

19045-MZ1-621

CAP COMP., RADIATOR

3 839 ₽/шт

7

19040-MF5-751

AN, COOLING (T.RAD)

4 612 ₽/шт

8

19051-KA3-830

Damper (Radiator)

307 ₽/шт

9

19052-MGH-640

Entretoise

228 ₽/шт

10

19069-MM9-000

JOINT, WATER HOSE

11

19101-MY5-860

TANK, RADIATOR RESERVE

12

19103-MN8-000

CAP, THERMOSTAT

5 222 ₽/шт

13

19104-MB0-700

CAP, RESERVE TANK

843 ₽/шт

14

19106-MN8-000

ECK, FILLER

7 442 ₽/шт

15

19130-MY5-610

STAY, THERMOSTAT

16

19300-KE8-000

Thermostat

5 982 ₽/шт

17

19311-MZ6-730

Thermostat cover

4 774 ₽/шт

18

19501-MY5-G30

Durite radiateur (radiator lower)

1 976 ₽/шт

19

19502-MY5-610

Durite radiateur (radiator upper)

20

19503-MY5-610

Durite radiateur

1 098 ₽/шт

21

19504-KY1-003

Collier (25)

723 ₽/шт

22

19504-MY5-610

Durite radiateur

982 ₽/шт

23

19505-MY5-610

Durite radiateur

24

19506-KS6-700

Collier

739 ₽/шт

25

19507-MY5-610

CLAMPER, RADIATOR HOSE

949 ₽/шт

26

19516-GAG-003

Collier (30-37 mm)

1 003 ₽/шт

27

19516-ML7-691

Collier

849 ₽/шт

28

37750-PC1-004

THERMO UNIT (DENSO)

4 523 ₽/шт

29

37760-MT2-003

Water temperature switch

5 534 ₽/шт

30

90111-162-000

Vis

338 ₽/шт

31

90315-MK3-003

NUT, SERRATE, 5MM

215 ₽/шт

32

91214-ZM3-003

OIL SEAL, 15X25X6

33

91311-KE8-000

O-Ring

259 ₽/шт

34

94608-30000

O-Ring

104 ₽/шт

35

95002-02100

Collier

55 ₽/шт

36

95002-02120

Collier

55 ₽/шт

37

95005-554-6020

TUBE5.3X460

38

95005-759-3020

TUBE 7.3X930

39

95701-060-2508

БОЛТ

63 ₽/шт

40

96001-060-1000

Bolt

63 ₽/шт

41

96001-060-1400

Bolt

63 ₽/шт

42

96001-060-2507

Болт

63 ₽/шт

43

96001-060-2807

Болт

79 ₽/шт
