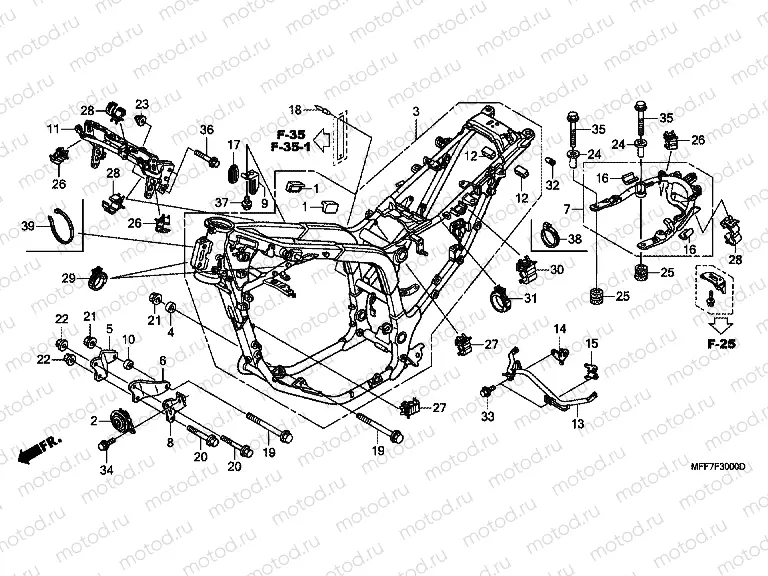

F-30 FRAME HOUSING

F-30 FRAME HOUSING
Например: 17529-MFF-D00
1
17529-MFF-D00
RUBBER, FUEL TANK
2
38120-MFF-D02
HORN COMP. (LOW) (MITSUBA
3
50010-MFF-D00ZA
SETFRAME*NH300M*
4
50186-MCB-610
OLLAR, R. ENGINE HANGER
5
50191-MCB-610
PLATE, R. ENGINE HANGER
6
50192-MCB-610
PLATE, L. ENGINE HANGER
7
50230-MFF-D00
PIPE COMP., RR.
8
50251-MFF-D00
STAYHORN
9
50252-MFF-D00
STAY, HARNESS COVER
10
50362-KT2-000
COLLAR, FR. ENGINE HANGER
487 ₽/шт
11
61310-MFF-D00
STAY COMP., FR. COWL
12
61313-GJ1-000
RUBBER
354 ₽/шт
13
64209-MFF-D00
STAY COMP., UNDER COWL
14
64212-MFF-D00
STAY, R. UNDER COWL
15
64213-MFF-D00
STAY, L. UNDER COWL
16
81214-MT3-300
RUBBER, PROTECTOR
166 ₽/шт
17
83551-ME9-000
Damper
291 ₽/шт
18
90040-GAS-900
RIVET, BLIND, 2.4X7
19
90108-GE1-670
Vis
771 ₽/шт
20
90155-ZA8-010
Vis
244 ₽/шт
21
90308-382-670
Nut (10 mm)
370 ₽/шт
22
90309-357-000
Nut (8 mm)
472 ₽/шт
23
90443-107-000
Nut (8 mm)
381 ₽/шт
24
90505-MFF-D00
COLLAR, RR. PIPE MOUNTING
25
90506-MCB-610
RUBBER, CARRIER MOUNTING
425 ₽/шт
26
90690-GHB-631
CLIP, CABLE, 8MM
189 ₽/шт
27
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
28
90690-GHB-651
CLIP, CABLE, 15MM
189 ₽/шт
29
90690-GHB-661
CLIP, CABLE, 20MM
208 ₽/шт
31
90690-GHB-681
CLIP, CABLE, 30MM
189 ₽/шт
32
90899-422-610
PLUG, CONE TYPE
291 ₽/шт
33
95701-060-1000
БОЛТ С ФЛАНЦЕМ
55 ₽/шт
34
95701-080-1207
Bolt, flange, 8x12
63 ₽/шт
35
95701-080-3507
Bolt, flange, 8x35
79 ₽/шт
36
95801-080-4007
Болт
86 ₽/шт
37
96001-060-0800
Болт
63 ₽/шт
38
90651-KV6-003
BAND, WIRE, 165MM (BLACK)
311 ₽/шт
