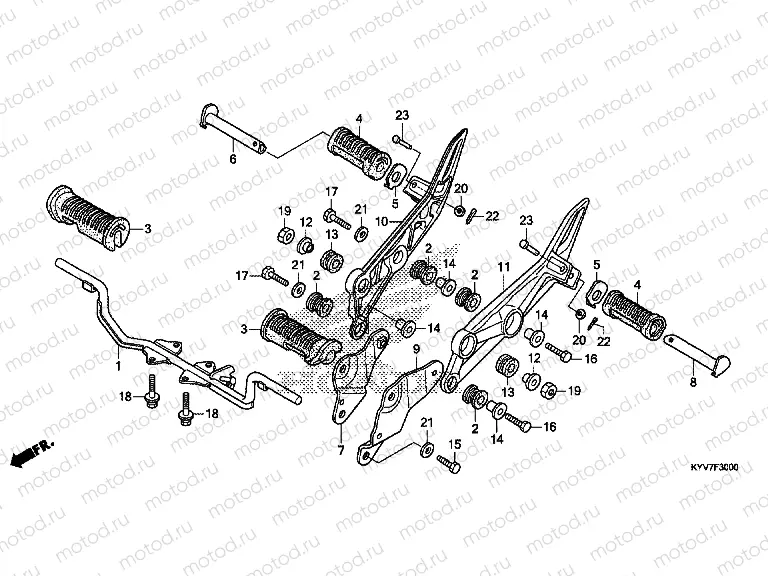

F-30 FOOTREST

F-30 FOOTREST
Например: 50610-KRS-830
1
50610-KRS-830
BAR COMPSTEP
2
50622-KBA-900
RUBBERSTEP HOLDE
3
50661-KVR-650
Footrest rubber
4
50710-GN5-830
Footrest rubber (Rear)
1 038 ₽/шт
5
50711-GN5-730
PLATE, PILLION STEP
6
50713-KRS-830
epose pieds (RH, passenger)
7
50713-KYV-C00
STAY RP STEP
8
50714-KRS-830
epose pieds (LH, passenger)
9
50714-KYV-C00
STAY LP STEP
10
50715-KYV-C00
BRKT RP STEP
11
50716-KYV-C00
BRKT LP STEP
12
90116-KEV-900
COLLARP STEP MT
13
90117-KEV-900
RUBBERMT.P.STEP
14
90118-KEV-900
ntretoise
15
92101-080-200A
Bolt
55 ₽/шт
16
92101-080-280A
Bolt, hex., 8x28
63 ₽/шт
17
92101-080-350A
Bolt, hex., 8x35
63 ₽/шт
18
93402-080-2000
БОЛТ
71 ₽/шт
19
94002-100-000S
Гайка
58 ₽/шт
20
94101-06000
Rondelle (M6)
39 ₽/шт
21
94103-08000
Rondelle (8 mm)
50 ₽/шт
22
94201-16150
PIN, SPLIT, 1.6X15
39 ₽/шт
23
95015-83000
PIN C, PILLION STEP
173 ₽/шт
