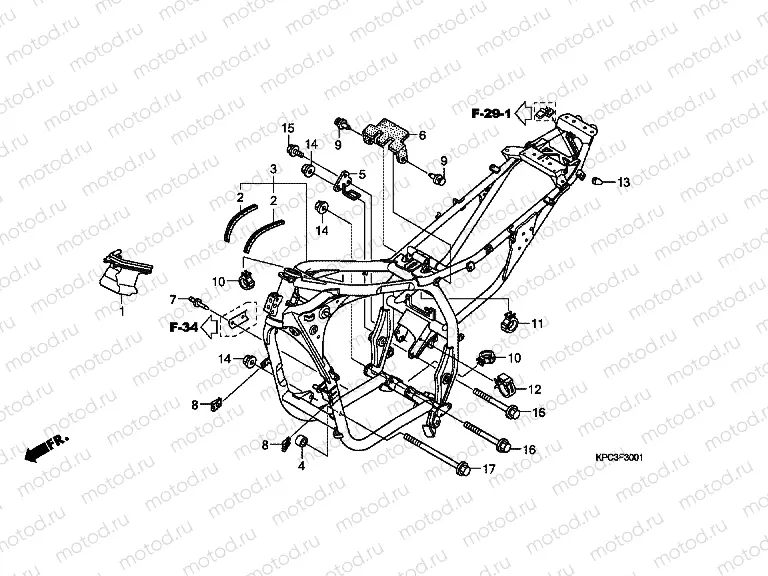

F-30-1 FRAME HOUSING (XL125V7 / 8)

F-30-1 FRAME HOUSING (XL125V7 / 8)
Например: 17251-KPC-D50
1
17251-KPC-D50
GUARDDUCT
2
17516-MG8-000
TRIM, FUEL TANK
3
50010-KPC-D50
BODY SET, FRAME
4
50163-KPC-640
OLLAR, ENGINE HANGER
5
50193-KPC-D50
STAYR UPENG HANG
6
77205-KPC-640
RUBBER, SEAT TOUCH
1 310 ₽/шт
7
90040-GAS-900
RIVET, BLIND, 2.4X7
8
90321-MBL-610
Clip nuts (6 mm)
9
90683-MBW-003
Rivet - panel fixing
236 ₽/шт
10
90690-GHB-631
CLIP, CABLE, 8MM
189 ₽/шт
11
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
12
90690-GHB-661
CLIP, CABLE, 20MM
208 ₽/шт
13
90899-422-610
PLUG, CONE TYPE
291 ₽/шт
14
94050-10000
Nut
79 ₽/шт
15
95701-080-1607
Bolt (95701-08016-07)
63 ₽/шт
16
95801-100-9500
Болт
165 ₽/шт
17
95801-101-5000
Bolt, flange, 10x150
220 ₽/шт
