Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA SH 125 HONDA SH125D9 SH125i [Drum Brake] 2009 HONDA (VIN: ZDCJF23A) F-3 HANDLE LEVER / SWITCH / CABLE (SH125D / 150D)

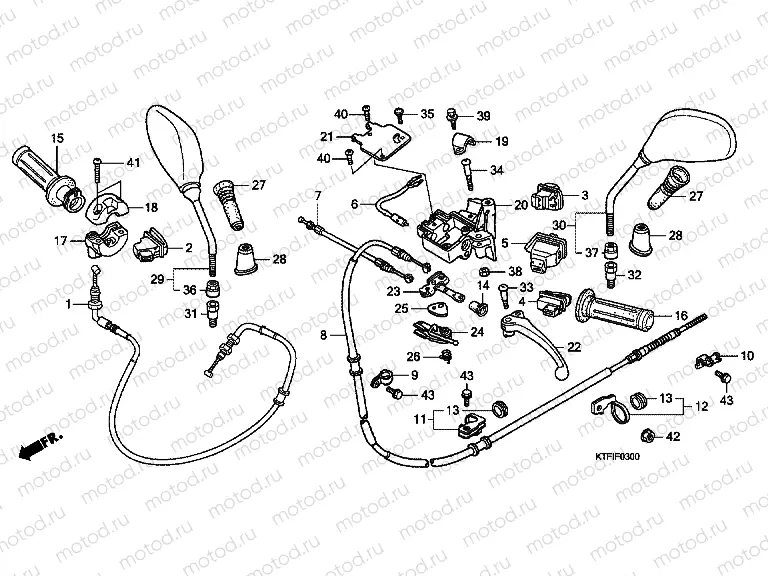

F-3 HANDLE LEVER / SWITCH / CABLE (SH125D / 150D)

F-3 HANDLE LEVER / SWITCH / CABLE (SH125D / 150D)
Например: 17910-KTF-981
1
17910-KTF-981
CABLE COMP., THROTTLE
3 468 ₽/шт
2
35160-KFG-003
SWITCH UNIT, STARTER
2 717 ₽/шт
3
35170-KFG-013
SWITCH UNIT, DIMMER
3 078 ₽/шт
4
35180-KCW-J40
SWITCH UNIT, HORN
1 806 ₽/шт
5
35200-KVB-900
SWITCH ASSY., WINKER
6
35340-GCC-J71
ommutateur de feu-stop
1 258 ₽/шт
7
43440-KTF-640
CABLE COMP., FR. BRAKE
8
43450-KTF-B20
CABLE COMPRR BRK
9
43455-GCK-000
LAMPER, RR. BRAKE CABLE
475 ₽/шт
10
43456-KGF-900
CLAMPER, RR. BRAKE CABLE
11
43460-KEY-900
GUIDE ASSY., BRAKE CABLE
12
43460-KGF-900
UIDE ASSY., BRAKE CABLE
13
45466-329-000
INNER, CABLE GUIDE
429 ₽/шт
14
45504-410-003
BOOT COMP.
771 ₽/шт
15
53140-KPZ-900
oignée d'accélérateur
16
53166-GW2-000
Poignées (L.H.)
739 ₽/шт
17
53167-GAH-A00
OUSING, UNDER THROTTLE
1 054 ₽/шт
18
53168-GAH-A00
OUSING, UPPER THROTTLE
1 054 ₽/шт
19
53171-GBL-870
AND, HANDLE BRACKET
244 ₽/шт
20
53172-KPR-901
BRACKET, L. HANDLE LEVER
4 430 ₽/шт
21
53173-KPR-900
COVER, L. BRAKE LEVER BRA
22
53178-GCS-000
LEVER, L. STEERING HANDLE
1 488 ₽/шт
23
53184-KPR-900
EQUALIZER COMP.
24
53185-KPR-900
ARM COMP., RR. BRAKE LOCK
25
53186-KPR-900
COVER, RR. BRAKE LOCK LEV
26
53188-GBL-870
SPRING, BRAKE LOCK ARM RE
228 ₽/шт
27
88113-KPR-900
BOOT, MIRROR UPPER
458 ₽/шт
28
88114-KPR-900
BOOT, MIRROR LOWER
262 ₽/шт
29
88210-KTF-B20
Rétroviseur droite
30
88220-KTF-B20
Rétroviseur gauche
31
90102-KTF-B20
OLT, ADAPTER, 8MM
32
90103-KTF-B20
OLT, ADAPTER, 8MM
33
90113-KGF-900
SCREW, HANDLE LEVER PIVOT
287 ₽/шт
34
90115-GBL-870
SCREW, HANDLE LEVER PIVOT
134 ₽/шт
35
90117-MN5-000
Vis
140 ₽/шт
36
90134-GM8-000
NUT, LOCK
291 ₽/шт
37
90135-KGF-900
NUT, LOCK (LEFT HAND THRE
303 ₽/шт
38
90302-435-761
Nut (5 mm)
311 ₽/шт
39
93401-060-2000
Bolt-washer
55 ₽/шт
40
93500-050-120H
Болт
39 ₽/шт
41
93500-050-220A
Screw, pan, 5x22
47 ₽/шт
42
94050-06000
Nut
55 ₽/шт
43
95701-060-1200
Bolt
58 ₽/шт
