Главная Каталог товаров HONDA EPC 700 cm³ - 1099 cm³ HONDA Shadow 750 HONDA NV750C21 Shadow 750 2001 HONDA (VIN: JH2RC44A) F-3-1 SWITCH / CABLE (NV750C2)

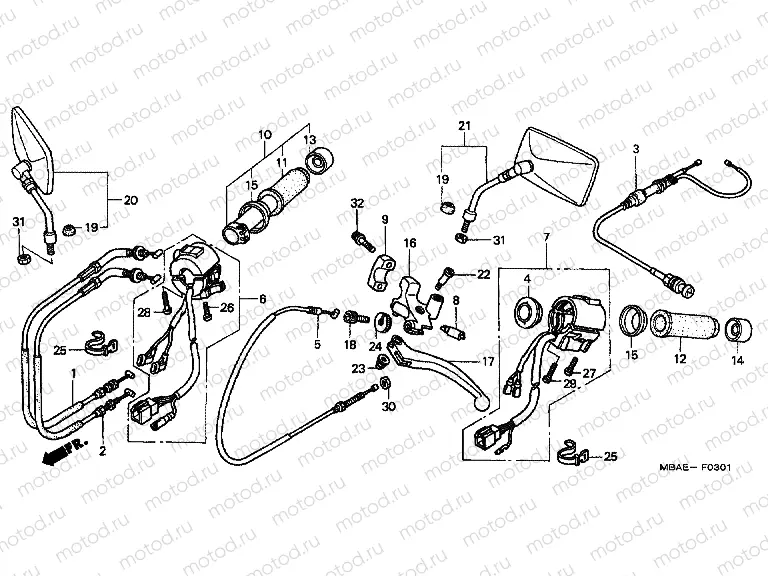

F-3-1 SWITCH / CABLE (NV750C2)

F-3-1 SWITCH / CABLE (NV750C2)

Например: 17910-MBA-000

1

17910-MBA-000

Câble de gaz (opening)

3 915 ₽/шт

2

17920-MBA-000

Câble de gaz (closing)

3 915 ₽/шт

3

17950-MBA-000

CABLE COMP., CHOKE

6 146 ₽/шт

4

17962-MR1-000

ADAPTER

1 384 ₽/шт

5

22870-MBA-000

Câble d'embrayage

2 601 ₽/шт

6

35130-MBK-J01

SW ASSY,ST ENGSTO

10 765 ₽/шт

7

35020-MBA-000

SWITCH SET, WINKER

14 017 ₽/шт

8

35330-413-003

SWITCH COMP., FR. LEVER (

1 573 ₽/шт

9

45517-MR1-671

HOLDER, MASTER CYLINDER (

1 431 ₽/шт

10

53145-MCL-000

Poignée d'accélérateur

7 439 ₽/шт

11

53165-MCL-300

Poignées (R.H.)

2 673 ₽/шт

12

53166-MCL-300

Poignées (L.H.)

3 670 ₽/шт

13

53167-MCL-000

AP, R. GRIP END

896 ₽/шт

14

53168-MCL-300

AP, L. GRIP END

991 ₽/шт

15

53170-MCL-300

RING, GRIP

755 ₽/шт

16

53172-MR1-000

BRACKET, HANDLE LEVER

3 627 ₽/шт

17

53178-MAH-000

Levier embrayage

2 095 ₽/шт

18

53192-268-000

BOLT, WIRE ADJUSTING

566 ₽/шт

19

88113-KN8-000

COVER,LOCK NUT

519 ₽/шт

20

88210-MZ8-A20

Rétroviseur droite

21

88220-MZ8-A20

Rétroviseur gauche

22

90113-438-000

BOLT, L. STEERING HANDLE

582 ₽/шт

23

90201-415-000

Nut (6 mm)

291 ₽/шт

24

90321-MA6-750

NUT, FIXING

848 ₽/шт

25

90652-MB0-000

AND, WIRE HARNESS

307 ₽/шт

26

93500-050-200A

Болт

39 ₽/шт

27

93500-050-220A

Screw, pan, 5x22

47 ₽/шт

28

93500-050-250A

Болт

47 ₽/шт

29

93500-050-320A

Screw, pan, 5x32

47 ₽/шт

30

94002-080-700S

Nut, hex. (8mm)

50 ₽/шт

31

94031-10020

Nut (10 mm)

66 ₽/шт

32

96600-060-2210

Bolt, socket (6x22)

79 ₽/шт
