Главная Каталог товаров HONDA EPC < 124 cm³ HONDA Dio 50 HONDA SK50MP DIO SR 1993 HONDA (VIN: AF28) F-3-1 HANDLE ARM / SWITCH / CABLE (2)

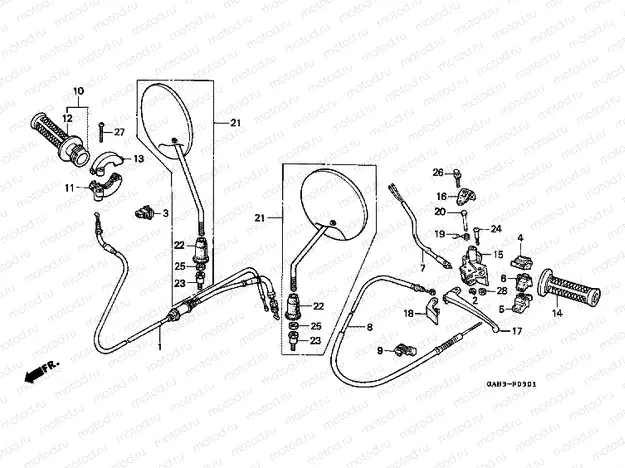

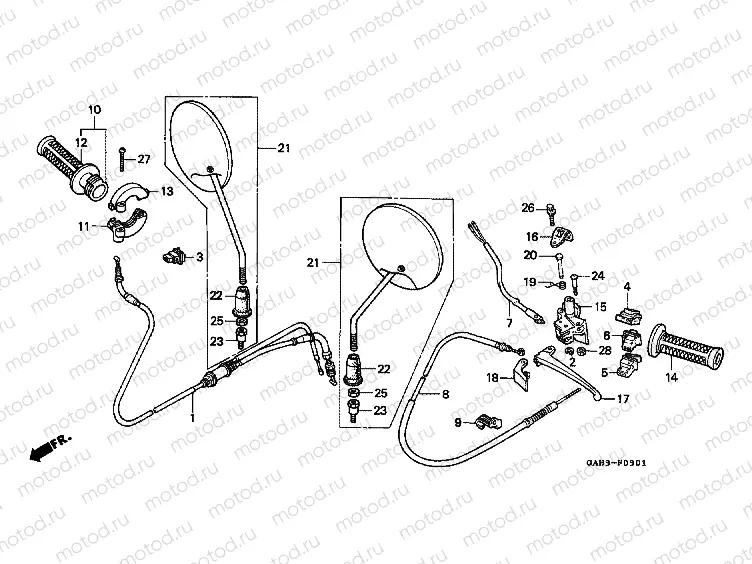

F-3-1 HANDLE ARM / SWITCH / CABLE (2)

F-3-1 HANDLE ARM / SWITCH / CABLE (2)
Например: 17910-GAH-000
1
17910-GAH-000
Câble de gaz
4 711 ₽/шт
2
30158-700-010
E-CLIP, 3MM
121 ₽/шт
3
35160-GS7-023
W.UNIT,START
4
35170-GS7-003
WITCH UNIT, DIMMER
1 705 ₽/шт
5
35180-GS7-023
WITCH UNIT, HORN
1 459 ₽/шт
6
35200-GAV-701
SWITCH UNIT, WINKER
1 400 ₽/шт
7
35340-GS7-003
Commutateur de feu-stop
1 401 ₽/шт
8
43450-GAH-A01
CABLE COMPRR BRK
2 789 ₽/шт
9
43452-GW0-000
CLAMP, BRAKE CABLE
291 ₽/шт
10
53140-GW0-000
Poignée d'accélérateur
1 337 ₽/шт
11
53167-GAH-700
OUSING, UNDER THROTTLE
1 195 ₽/шт
12
53167-GW0-305
Poignées (R.H.)
991 ₽/шт
13
53168-GAH-A00
OUSING, UPPER THROTTLE
1 054 ₽/шт
14
53168-GW0-305
Poignées (L.H.)
1 074 ₽/шт
15
53172-GW2-000
BRACKETHANDLE
16
53173-GS7-003
BAND, HANDLE BRACKET
432 ₽/шт
17
53178-GS7-670
LEVER, L. STEERING HANDLE
1 132 ₽/шт
18
53181-GN2-930
LEVER COMP., PARKING
19
53182-155-010
SPRING, LEVER RETURN
338 ₽/шт
20
53183-155-000
PIN, PARKING LEVER PIVOT
554 ₽/шт
21
88210-KY0-601
MIRROR COMP
22
88113-GN2-600
CAP,LOCK NUT
23
88115-GAH-790
BOLT, ADAPTER, 8MM
645 ₽/шт
24
90115-147-000
SCREW, HANDLE LEVER PIVOT
259 ₽/шт
25
90201-GC8-650
NUT, HEX., 8MM (LEFT HAND
181 ₽/шт
26
93401-060-2000
Bolt-washer
55 ₽/шт
27
93500-050-220A
Screw, pan, 5x22
47 ₽/шт
28
94001-050-000S
Гайка
39 ₽/шт
