Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA XL 650 V Transalp HONDA XL650V4 TRANSALP 2004 HONDA (VIN: VTMRD11A) F-28 FRAME BODY

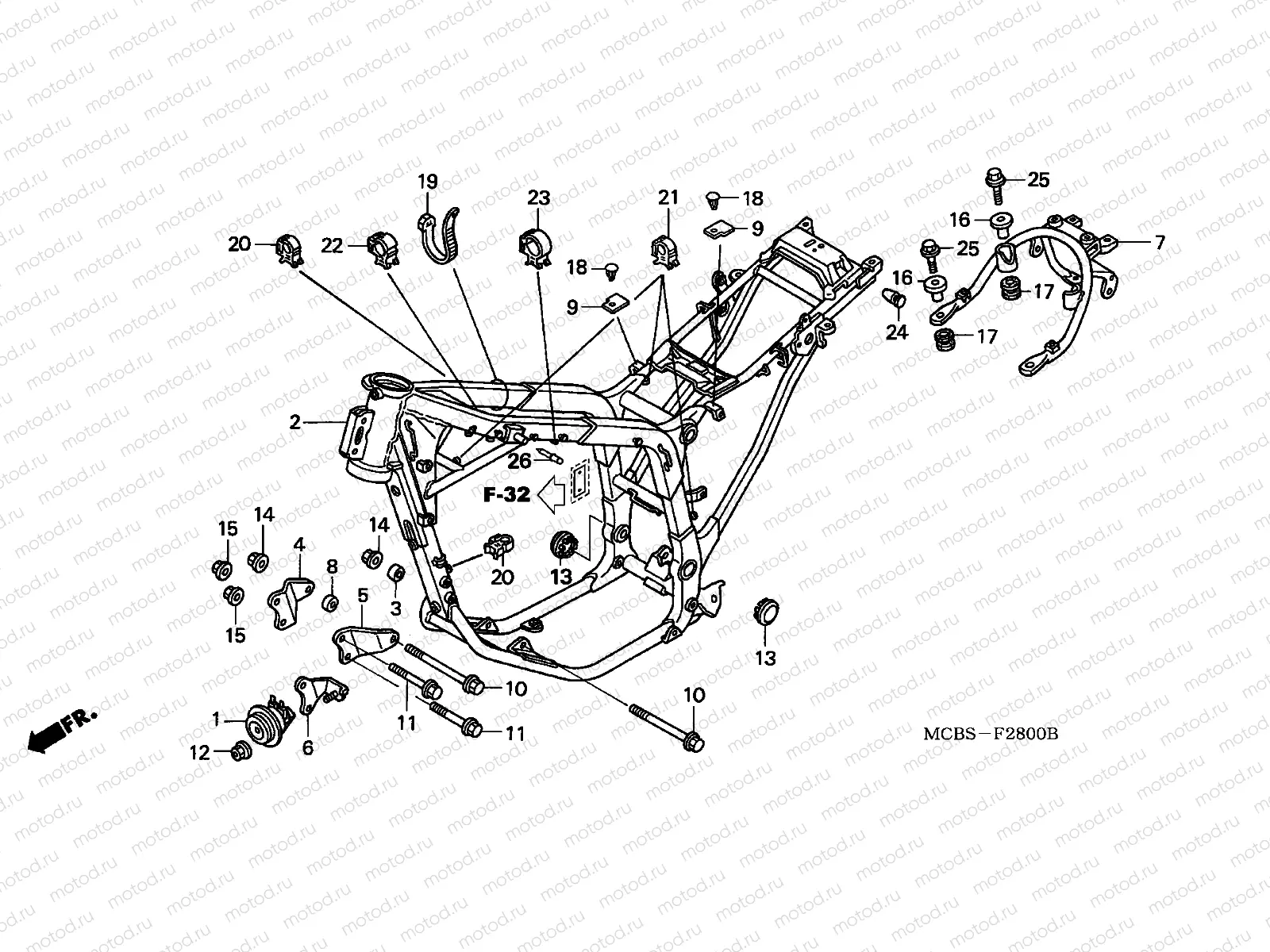

F-28 FRAME BODY

F-28 FRAME BODY
Например: 38120-MAW-631
1
38120-MAW-631
HORN COMP. (LOW)
2
50100-MCB-960ZA
FRAME BOD*NH300M*
3
50186-MCB-610
OLLAR, R. ENGINE HANGER
4
50191-MCB-610
PLATE, R. ENGINE HANGER
5
50192-MCB-610
PLATE, L. ENGINE HANGER
6
50193-MCB-610
STAY, HORN
7
50230-MCB-610
PIPE COMP., RR.
8
50362-KT2-000
COLLAR, FR. ENGINE HANGER
487 ₽/шт
9
77205-MCB-610
RUBBER, SEAT
10
90108-GE1-670
Vis
771 ₽/шт
11
90155-ZA8-010
Vis
244 ₽/шт
12
90208-425-870
Nut (8 mm)
307 ₽/шт
13
90302-MS6-620
CAP, PIVOT
793 ₽/шт
14
90308-382-670
Nut (10 mm)
370 ₽/шт
15
90309-357-000
Nut (8 mm)
472 ₽/шт
16
90505-MCB-610
OLLAR, RR. PIPE MOUNTING
17
90506-MCB-610
RUBBER, CARRIER MOUNTING
425 ₽/шт
18
90677-KV3-950
CLIP, ANCHOR
291 ₽/шт
19
90679-SG9-E01
BAND, SUCTION HOSE (BLACK
215 ₽/шт
20
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
21
90690-GHB-651
CLIP, CABLE, 15MM
189 ₽/шт
22
90690-GHB-661
CLIP, CABLE, 20MM
208 ₽/шт
23
90690-GHB-681
CLIP, CABLE, 30MM
189 ₽/шт
24
90899-422-610
PLUG, CONE TYPE
291 ₽/шт
25
95701-080-3807
Bolt,flange,
79 ₽/шт
26
90040-GAS-900
RIVET, BLIND, 2.4X7
