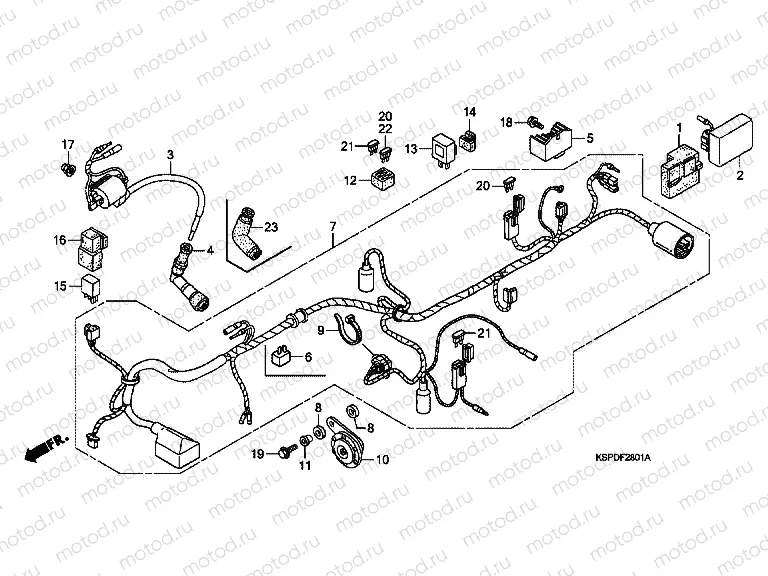

F-28-1 WIRING HARNESS (CBF1507 / M7 / M9 / MA)

F-28-1 WIRING HARNESS (CBF1507 / M7 / M9 / MA)
Например: 30401-KSP-911
1
30401-KSP-911
CUSHIONC.D.I.UNI
2
30410-KSP-861
CDI unit
3
30500-KSP-B11
obine d'allumage
5
31600-KSP-861
Régulateur de tension
6
31700-124-008
RECTIFIER ASSY., SILICON
4 323 ₽/шт
7
32100-KSP-860
Harness wire
8
33714-KL3-620
RUBBER, TAILLIGHT BRACKET
212 ₽/шт
9
35701-MG9-950
BAND (BLACK 3.5X140)
228 ₽/шт
10
38110-KSP-931
HORN COMP (HIGH)
11
38117-KFE-701
COLLAR, HORN SETTING
291 ₽/шт
12
38201-KSP-910
RUBBERSPARE FUSE
13
38301-KPL-901
Relais clignotant
14
38306-GE7-000
SUSPENSION, WINKER RELAY
495 ₽/шт
15
38502-KSP-910
RELAY COMPPOWER(
16
38506-KSP-910
USPPOWER RELAY
17
90201-415-000
Nut (6 mm)
291 ₽/шт
18
95702-060-1200
Vis
19
95702-060-2008
Vis
21
98200-31500
Fusible (15A)
55 ₽/шт
22
98200-32000
Fusible (20A)
55 ₽/шт
23
30700-KSP-B01
park plug cap
