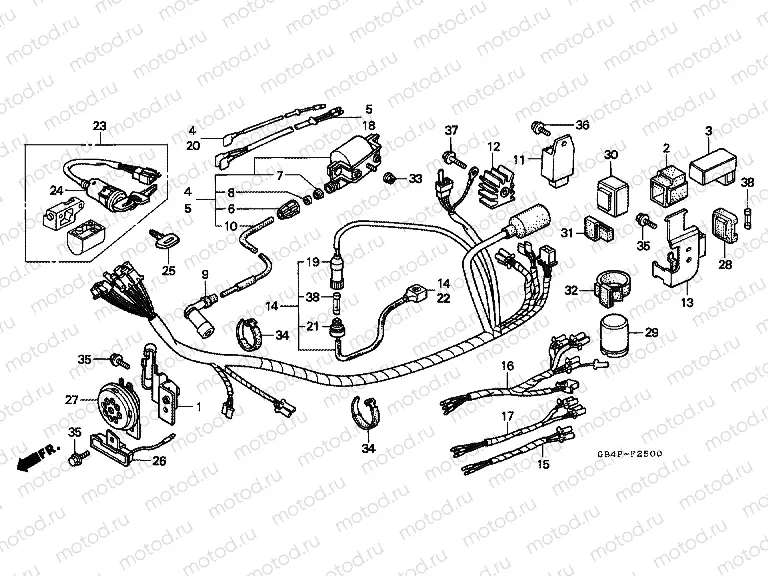

F-25 WIRING HARNESS / IGNITION COIL

F-25 WIRING HARNESS / IGNITION COIL
Например: 17640-GB4-010
1
17640-GB4-010
CLAMPERFUEL TUBE
982 ₽/шт
2
30401-GB4-770
CUSHION, C.D.I. UNIT
566 ₽/шт
3
30410-141-751
CDI unit
12 283 ₽/шт
4
30500-GB4-003
COILCDI IGN ** NLA**
6
30501-428-003
CAP, SCREW
503 ₽/шт
7
30502-428-003
SEAL, RUBBER
275 ₽/шт
8
30503-428-003
WASHER, CAP
283 ₽/шт
9
30700-GB3-602
Spark plug cap
1 691 ₽/шт
10
30500-GB4-003
COILCDI IGN ** NLA**
12
31750-735-013
RECTIFIER COMP., REGULATO
13
31603-GB4-000
STAYC.D.I UNIT
14
32100-GB4-600
Harness wire
15
32101-GB4-600
SUB HARNESS A
17
32102-GB4-600
SUB HARNESS B
19
32106-437-300
CONNECTOR A, FUSE (YUASA)
20
32111-GB4-000
SUB CORD A
21
32112-041-008
CONNECTOR B, FUSE (YUASA)
524 ₽/шт
22
32412-GB4-700
COVERTERMINAL
491 ₽/шт
23
35010-GB4-030
KEY SET
24
35100-GBJ-730
SWITCH ASSY., COMBINATION
4 306 ₽/шт
25
35122-MR1-770
Clé Vierge
991 ₽/шт
26
35400-GB4-700
RESISTOR ASSY.
27
38110-MR8-602
HORN COMP.(HIGH)
28
38205-GB4-000
CASEFUSE
29
38301-GJ1-603
Relais clignotant (mitsuba)
3 222 ₽/шт
31
38306-KJ6-740
SUSPENSION, WINKER RELAY
456 ₽/шт
32
38306-292-000
SUSPENSION, WINKER RELAY
414 ₽/шт
33
94050-06000
Nut
55 ₽/шт
34
95014-61300
BAND A3, WIRE
126 ₽/шт
35
95701-060-1200
Bolt
58 ₽/шт
36
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
37
95701-060-3200
Bolt, flange, 6x32
69 ₽/шт
38
98200-11000
Fusible (10A)
63 ₽/шт
