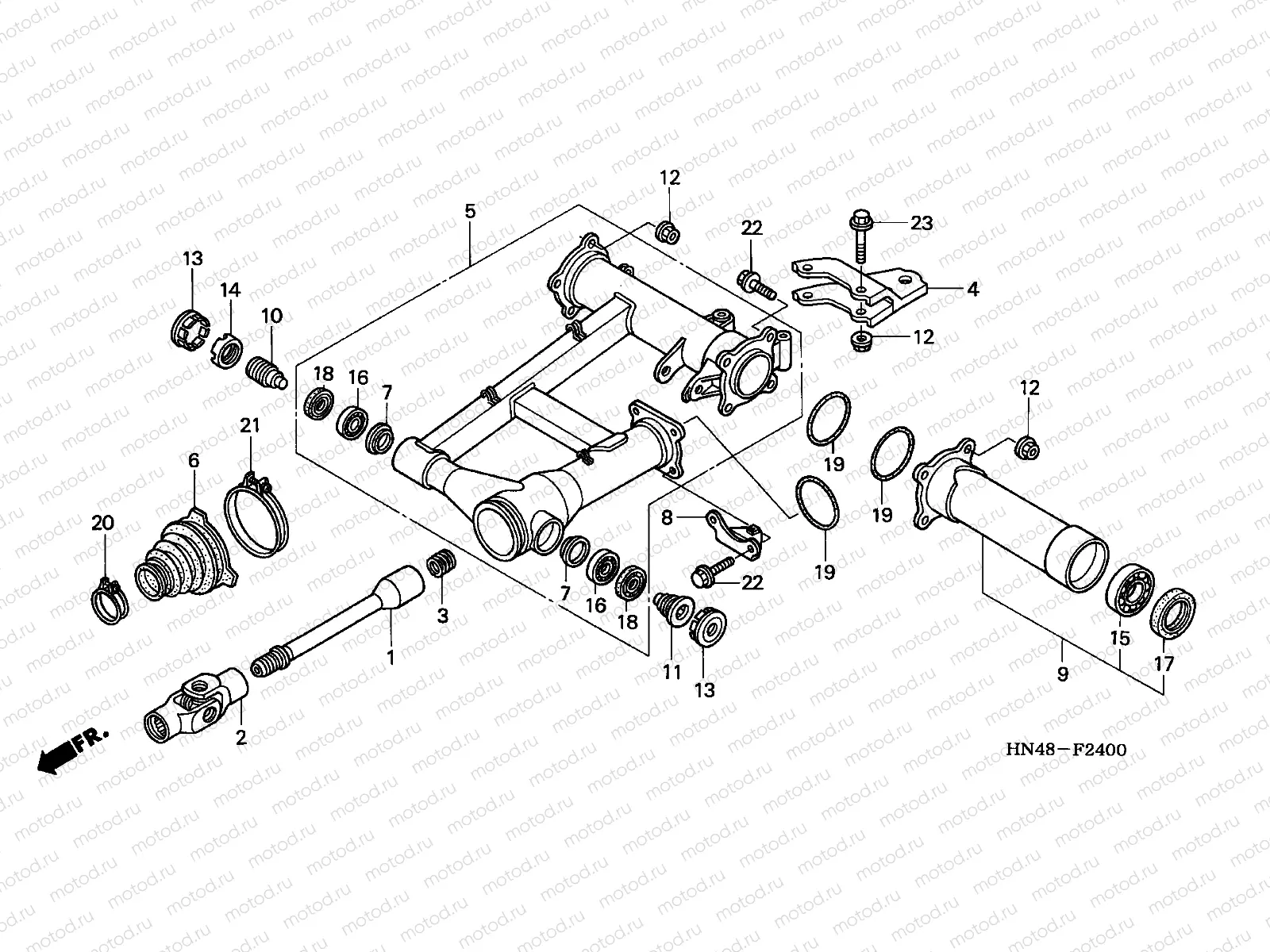

F-24 SWINGARM

F-24 SWINGARM
Например: 40201-HN5-670
1
40201-HN5-670
SHAFTPROP
2
40210-HN7-010
JOINT COMP., YOKE
3
40215-HN0-671
SPRING, PROPELLER SHAFT
4
50810-HN2-000
ITCH COMPTRAILE
5
52100-HN5-670
SWINGARM ASSY., RR.
6
52101-HN5-670
BOOT, JOINT
7
52112-MA1-300
HOLDER, RR. FORK GREASE
425 ₽/шт
8
52190-HN5-670
STAY COMPSKID PL
9
52300-HN5-670
PIPE ASSY., L. HOUSING
10
90121-HM5-930
BOLT A, PIVOT
11
90122-HM5-930
BOLT B, PIVOT
12
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
13
90312-HM5-670
CAP, LOCK NUT
14
90355-469-000
NUT, SWINGARM PIVOT LOCK
1 022 ₽/шт
15
91055-HN5-681
BEARING, RADIAL BALL, 32X
16
91066-HC4-004
BEARING, ANGULAR, 7203
17
91255-HA0-681
Joint
1 548 ₽/шт
18
91268-HN0-A01
DUST SEAL, 26X40X5 (NOK)
19
91320-HM7-702
O-Ring
348 ₽/шт
20
95018-48250
BAND 48AIR/C CON
346 ₽/шт
21
95018-90320
BAND, AIR CLEANER CONNECT
22
95701-100-2500
Bolt, flange, 10x25
86 ₽/шт
23
95801-100-6000
Bolt, flange, 10x60
99 ₽/шт
