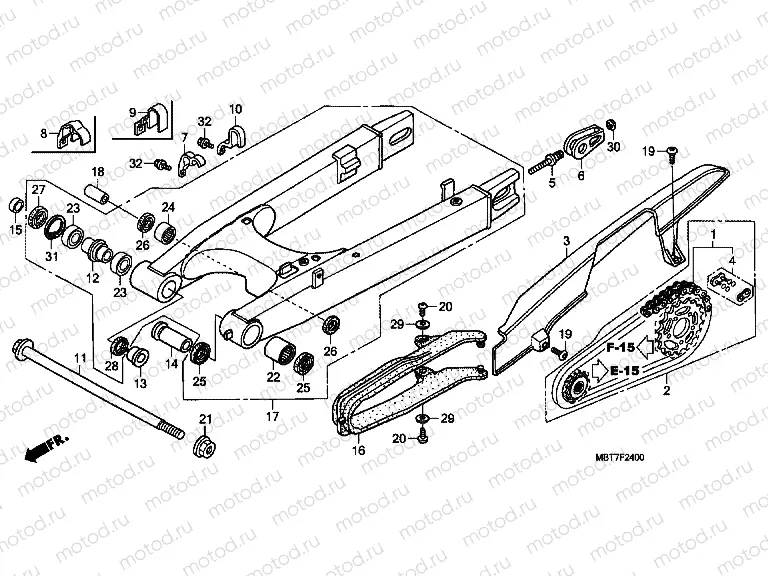

F-24 SWING ARM

F-24 SWING ARM

Например: 40540-MAL-G02

1

40540-MAL-G02

CHAIN, DRIVE (RK EXCEL) ( (Standard original)

18 785 ₽/шт

2

06406-MBT-611

CHAIN KIT, DRIVE (525-120 (Standard original)

3

40510-MBT-D10

CASE, DRIVE CHAIN

4 789 ₽/шт

4

40535-MAL-G02

JOINT SET, DRIVE CHAIN (R

944 ₽/шт

5

40542-MBT-D50

OLT, CHAIN ADJUSTING

524 ₽/шт

6

40543-MBT-D20

ADJUSTER, CHAIN

7

43156-MAT-000

GUIDE, RR. BRAKE HOSE

708 ₽/шт

10

43159-MBT-610

GUIDE, RR. BRAKE HOSE

1 147 ₽/шт

11

52101-MBT-610

OLT, SWINGARM PIVOT

6 672 ₽/шт

12

52141-MBT-D20

COLLAR, CENTER PIVOT DIST

13

52142-MBT-D20

COLLAR, R. SIDE PIVOT

14

52143-MBT-D20

COLLAR, L. SIDE PIVOT

15

52144-MBT-D20

COLLAR, R. PIVOT DISTANCE

16

52170-MBT-D10

Guard chain sliding shoe

17

52200-MBT-D20

SWINGARM SUB ASSY., RR.

18

52463-MBT-D20

Entretoise

1 006 ₽/шт

19

90112-MT3-000

Vis

245 ₽/шт

20

90115-KV3-700

is

165 ₽/шт

21

90305-MB4-003

Nut (18 mm)

760 ₽/шт

22

91071-MR7-003

Needle bearing

1 074 ₽/шт

23

91072-MR7-003

oulement

958 ₽/шт

24

91072-MY1-005

Needle bearing (20x26x20)

1 400 ₽/шт

25

91202-MR7-003

DUST SEAL, 28X37X4

503 ₽/шт

26

91254-KS6-003

DUST SEAL, 20X26X4.5 (ARA

692 ₽/шт

27

91257-KY4-900

DUST SEAL, 27X37X5

447 ₽/шт

28

91261-KZ3-861

DUST SEAL, 27X34X4

660 ₽/шт

29

94103-05700

Rondelle

39 ₽/шт

30

94511-10000

CIRCLIP, EXTERNAL, 10MM

50 ₽/шт

31

94520-37000

Seeger (37mm)

116 ₽/шт

32

96001-060-1600

БОЛТ

63 ₽/шт
