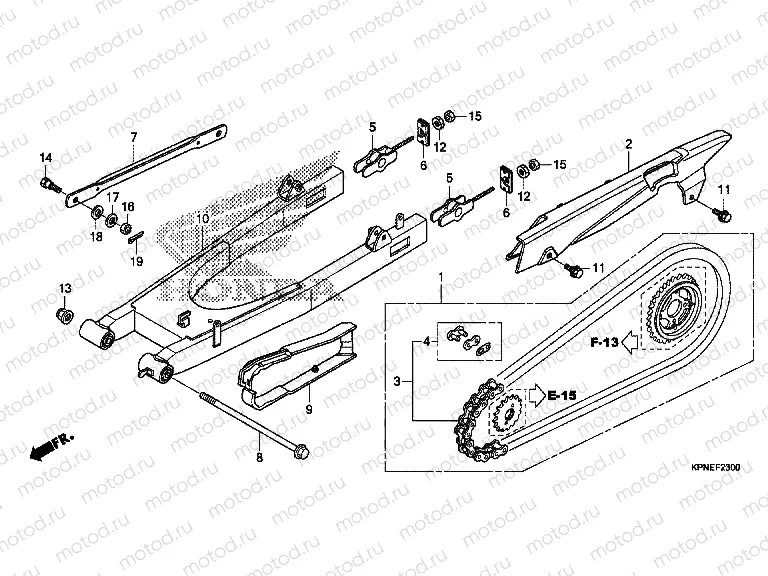

F-23 SWINGARM / CHAIN ​​CASE

F-23 SWINGARM / CHAIN ​​CASE
Например: 06406-KPN-A70
1
06406-KPN-A70
CHAIN KIT, DRIVE (428-15& (Standard original)
2
40510-KPN-A70
CASE, DRIVE CHAIN
3
40530-KYY-931
CHAIN, DRIVE (KMC428DF-12
4
40531-KYY-931
JOINT DRIVE CHAIN
5
40543-KPN-A70
DJUSTER COMP., CHAIN
6
40546-KYY-900
CAP, SWINGARM END
7
43431-KVX-600
ARMRR BRK STPR
8
52101-KPN-A70
BOLT, SWINGARM PIVOT
9
52170-KPN-A70
SLIDER, CHAIN
10
52200-KPN-E20ZA
SWINGARM SUB ASSY., RR. *
11
90119-KTT-900
Vis
244 ₽/шт
12
90302-KBP-900
Nut (spec. 6mm)
215 ₽/шт
13
90306-KPN-E01
UT FLANGE 12MM (P
14
92812-20000
BOLT A, BRAKE STOPPER ARM
197 ₽/шт
15
94001-062-000S
Гайка
47 ₽/шт
16
94001-080-000S
Гайка
47 ₽/шт
17
94101-08000
Rondelle (8 mm)
39 ₽/шт
18
94111-10000
Rondelle (Spring, 10 mm)
315 ₽/шт
19
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
