Главная Каталог товаров HONDA EPC 700 cm³ - 1099 cm³ HONDA CBR 900 RR (900-929-954) HONDA CBR900RRV Fireblade 1997 HONDA (VIN: JH2SC33A) F-23 SWING ARM

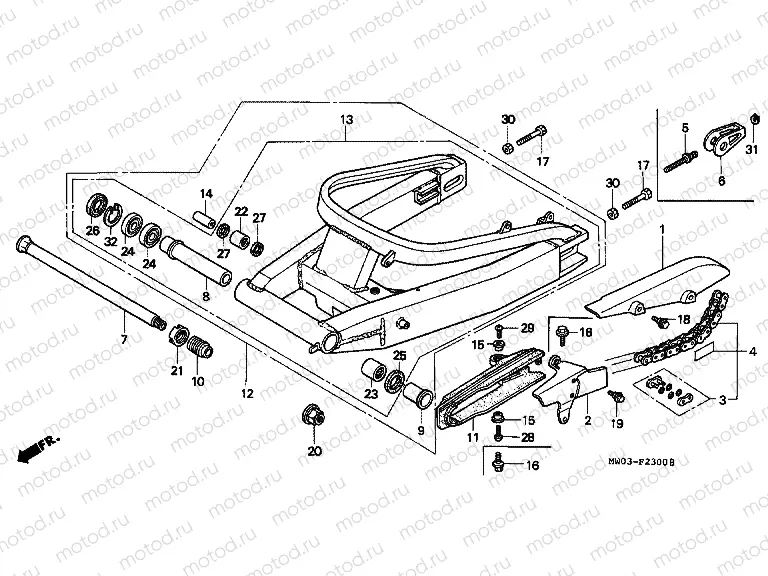

F-23 SWING ARM

F-23 SWING ARM
Например: 40510-KY2-700
1
40510-KY2-700
CASE A, DRIVE CHAIN
2
40520-MW0-000
CASE B, DRIVE CHAIN
3
40545-MAS-005
JOINT, DRIVE CHAIN (RK EX
1 180 ₽/шт
4
40540-MAS-005
CHAIN,DRIVE RKGB5
19 449 ₽/шт
5
40542-KV3-700
BOLT, CHAIN ADJUSTING
627 ₽/шт
6
40543-MAS-010
DJUSTER, CHAIN
1 806 ₽/шт
7
52101-MW0-000
BOLT, SWINGARM PIVOT
5 552 ₽/шт
8
52102-MW0-000
COLLAR, SWINGARM PIVOT
1 486 ₽/шт
9
52106-MR7-000
COLLAR B, PIVOT
1 730 ₽/шт
10
52109-MR8-000
BOLT, PIVOT ADJUSTING
1 915 ₽/шт
11
52170-MW0-000
SLIDER, CHAIN
12
52200-MAS-000
WINGARM SUB ASSY
14
52463-KV3-000
Entretoise
1 008 ₽/шт
15
81312-GJ5-000
Entretoise
289 ₽/шт
16
90105-MY9-000
Vis
200 ₽/шт
18
90111-187-000
Vis
425 ₽/шт
19
90113-MW0-000
Vis
322 ₽/шт
20
90305-MB4-003
Nut (18 mm)
760 ₽/шт
21
90355-469-000
NUT, SWINGARM PIVOT LOCK
1 022 ₽/шт
22
91072-MJ0-003
Needle bearing (17x24x25)
1 156 ₽/шт
23
91071-MR7-003
Needle bearing
1 074 ₽/шт
24
91072-MR7-003
oulement
958 ₽/шт
25
91202-MR7-003
DUST SEAL, 28X37X4
503 ₽/шт
26
91214-MR7-003
DUST SEAL, 26X37X5
645 ₽/шт
27
91262-KV3-831
DUST SEAL, 17X24X5 (ARAI)
425 ₽/шт
31
94511-10000
CIRCLIP, EXTERNAL, 10MM
50 ₽/шт
32
94520-37000
Seeger (37mm)
116 ₽/шт
