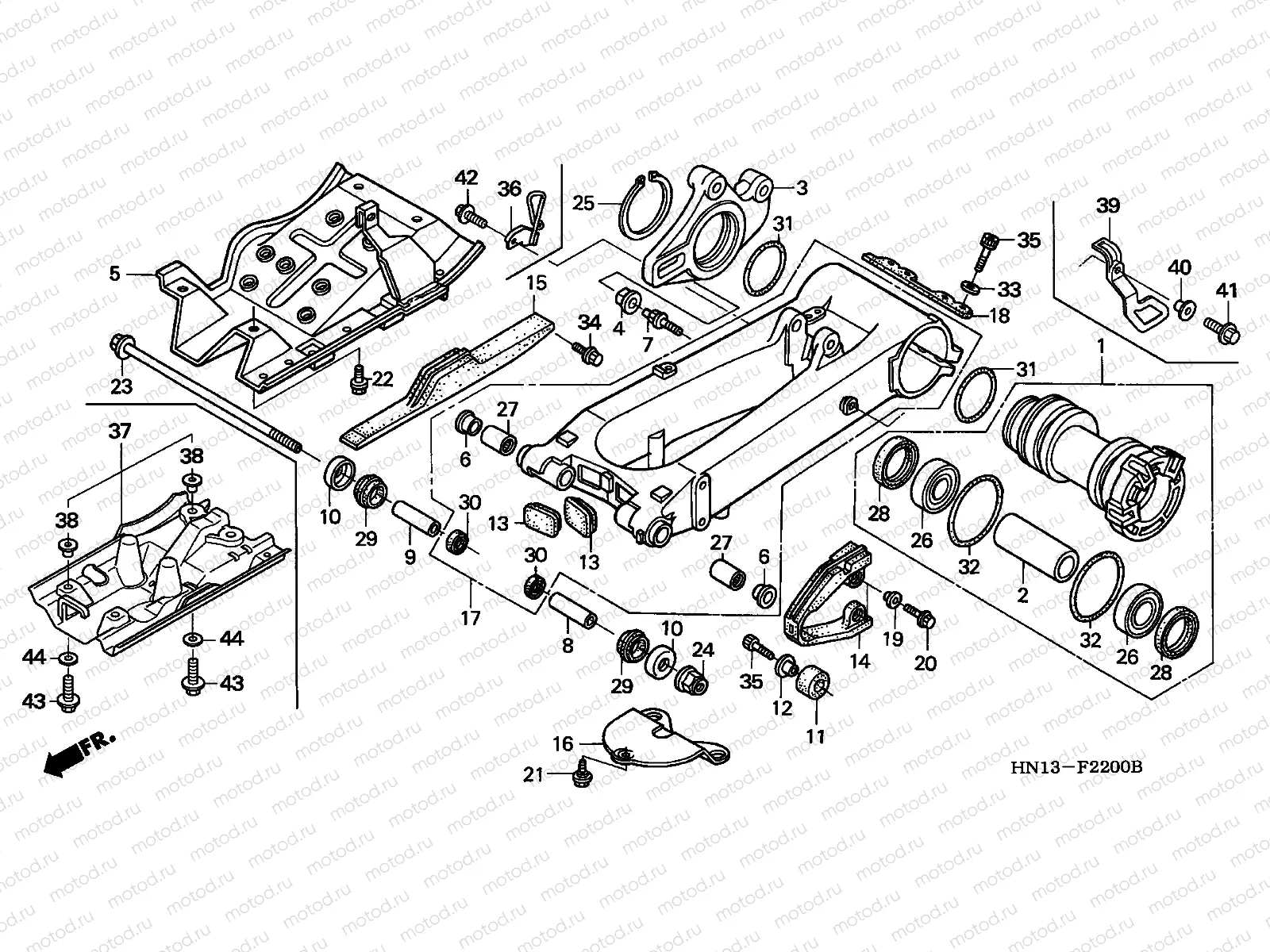

F-22 SWINGARM

F-22 SWINGARM
Например: 42500-HN1-A40
1
42500-HN1-A40
OLDER ASSY., BEARING
2
42621-HB9-770
COLLAR, RR. AXLE
3
43211-HN1-A40
STAY, RR. CALIPER
4
43483-HB5-670
USH, RR. BRAKE STAY
5
50355-HN1-000
PLATESKID
6
52109-KA4-701
BUSH, PIVOT THRUST
1 148 ₽/шт
7
52121-HB9-770
OLT, TORQUE LINK
8
52141-HN1-000
COLLAR, SWINGARM PIVOT
1 321 ₽/шт
9
52142-HN1-000
COLLAR B, SWINGARM PIVOT
10
52144-KA3-731
CAP, DUST SEAL
975 ₽/шт
11
52158-HC0-000
ROLLER, CHAIN
744 ₽/шт
12
52159-467-000
COLLAR, CHAIN ROLLER
909 ₽/шт
13
52161-HN1-010
CAP, RR. SWINGARM
14
52170-HN1-000
Guard chain sliding shoe
15
52181-HN1-A40
SLIDER, CHAIN GUIDE
16
52191-HN1-000
PLATE, RR. CUSHION PROTEC
17
52200-HN1-A40
SWINGARM SUB ASSY
18
52202-HB9-770
SEAL, BEARING HOLDER
19
81312-GJ5-000
Entretoise
289 ₽/шт
20
90105-MY9-000
Vis
200 ₽/шт
21
90111-GJ5-000
Vis
348 ₽/шт
22
90123-KV0-000
is
252 ₽/шт
23
90121-HN1-000
BOLT, SWINGARM PIVOT
24
90305-GE8-003
Nut (14 mm)
409 ₽/шт
25
90665-964-000
Seeger
26
91051-HA2-013
BEARING, 40X62X12 (KOYO)
27
91071-MA0-003
BEARING, SWINGARM PIVOT (
1 519 ₽/шт
28
91252-HA2-003
DUST SEAL, 52X62X7 (ARAI)
29
91253-KA4-701
DUST,32X37.5X8
1 074 ₽/шт
30
91254-KS6-003
DUST SEAL, 20X26X4.5 (ARA
692 ₽/шт
31
91351-737-752
O-RING, ROTARY CASE
32
91353-HA2-003
O-RING, BEARING HOLDER (A
33
94102-08000
Rondelle (8 mm)
39 ₽/шт
34
95701-060-1200
Bolt
58 ₽/шт
35
96700-080-4000
Bolt, socket (8x40)
86 ₽/шт
36
43465-HP1-000
CLAMP C COMPBRK
37
50355-HN1-A40
PLATE COMP., SKID
38
50358-HP1-000
COLLARSKID PLATE
39
52156-HN1-A40
GUARD, DRIVE CHAIN
40
52159-KB7-000
COLLAR, CHAIN GUARD
456 ₽/шт
41
90105-HP1-000
Vis
181 ₽/шт
42
90112-GW3-000
Vis
204 ₽/шт
43
90131-GW0-750
Vis
291 ₽/шт
44
90504-MA6-000
WASHER, 8.5X26
244 ₽/шт
