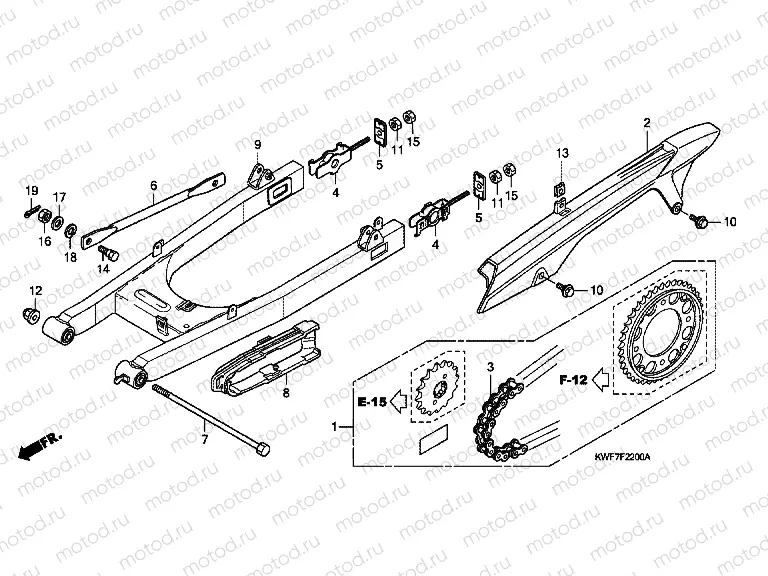

F-22 SWING ARM

F-22 SWING ARM
Например: 06406-KWF-P01
1
06406-KWF-P01
CHAIN KIT, DRIVE (428-118 (Standard original)
2
40510-KWF-950
CASEDRIVE CHAIN
3
40530-KWF-951
CHAIN, DRIVE (RK428KRO-11
4
40544-KWF-950
ADJUSTER COMP., R. CHAIN
5
40546-KWF-950
CAP, SWINGARM END
6
43431-KWF-900
ARMRR BRK STPR
7
52101-KWF-950
BOLT, SWINGARM PIVOT
8
52170-KWF-900
SLIDER, CHAIN
9
52200-KWF-950
SWINGARM SUB ASSY
10
90111-KWF-900
Vis
11
90302-KBP-900
Nut (spec. 6mm)
215 ₽/шт
12
90306-KF0-003
Nut (12 mm)
346 ₽/шт
13
90320-747-000
Clip nuts (6 mm)
182 ₽/шт
14
92812-10000
BOLT A, STOPPER ARM
197 ₽/шт
15
94001-062-000S
Гайка
47 ₽/шт
16
94001-080-000S
Гайка
47 ₽/шт
17
94101-08000
Rondelle (8 mm)
39 ₽/шт
18
94111-10000
Rondelle (Spring, 10 mm)
315 ₽/шт
19
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
