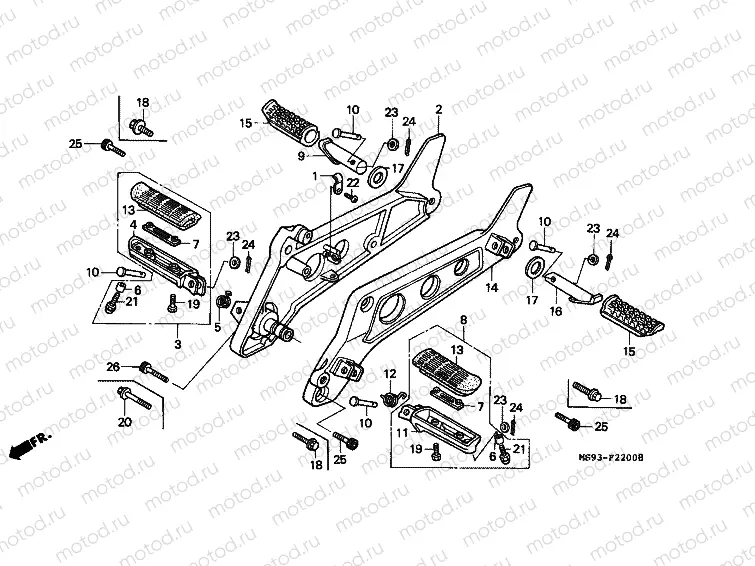

F-22 FOOTREST

F-22 FOOTREST
Например: 30315-ME5-000
1
30315-ME5-000
CLAMPER BPULSE
2
50600-MS9-305
HOLDER R STEP (RH)
3
50610-MS9-750
TEP ASSY *** NLA***
4
50612-MM5-000
Repose pieds (RH)
6 215 ₽/шт
5
50617-445-840
SPRING, R. STEP RETURN
330 ₽/шт
6
50618-MN8-000
COLLAR, 8.3
259 ₽/шт
7
50619-MM5-000
PLATE, STEP SETTING
843 ₽/шт
8
50620-MS9-750
TEP ASSY L MAIN ** NLA**
9
50633-MS9-000
Repose pieds (RH, passenger)
10
50639-MB2-000
PIN, STEP BAR JOINT
451 ₽/шт
11
50642-MM5-000
Repose pieds (LH)
5 933 ₽/шт
12
50644-445-840
SPRING, L. STEP RETURN
346 ₽/шт
13
50661-MJ4-670
Footrest rubber
1 541 ₽/шт
14
50700-MS9-000
HOLDER L STEP (LH)
15
50710-KE8-000
Footrest rubber (Rear)
991 ₽/шт
16
50712-KN6-940
Repose pieds (LH, passenger)
17
50715-ML4-000
PLATE, PILLION STEP SIDE
322 ₽/шт
18
90106-MB3-000
Vis
320 ₽/шт
19
90115-MJ4-670
BOLT,M.STEP RUB.S
267 ₽/шт
20
90126-ZW4-000
Vis
21
92501-080-200A
Bolt, cap (8x20)
142 ₽/шт
22
93500-060-060G
Screw,pan 6x6
47 ₽/шт
23
94102-08000
Rondelle (8 mm)
39 ₽/шт
24
94201-16150
PIN, SPLIT, 1.6X15
39 ₽/шт
