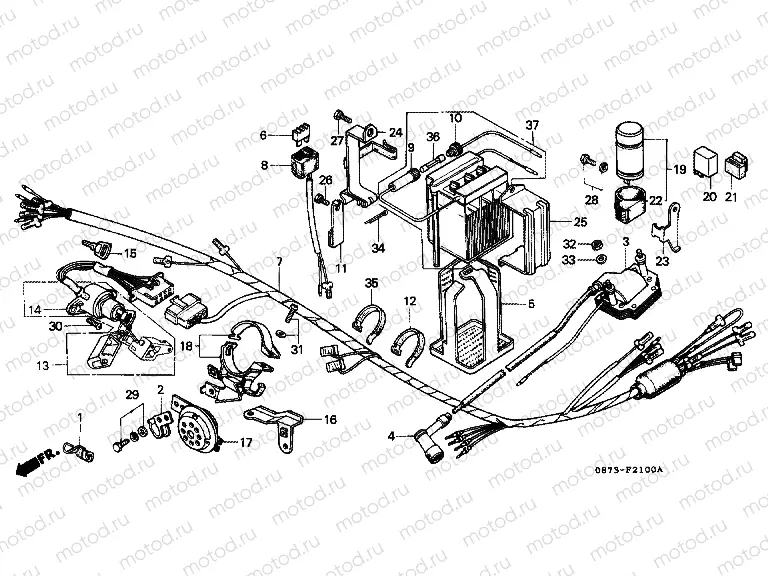

F-21 WIRING HARNESS / BATTERY

F-21 WIRING HARNESS / BATTERY
Например: 17121-130-640
1
17121-130-640
CRAMPERFUEL TUBE
3
30530-087-711
Bobine d'allumage
4
30700-KE2-942
Spark plug cap
1 936 ₽/шт
5
31502-086-017
BAND, BATTERY MOUNTING
928 ₽/шт
6
31700-124-008
RECTIFIER ASSY., SILICON
4 323 ₽/шт
7
32100-087-640
Harness wire
8
32105-086-000
SUB-HARNESS
9
32106-437-300
CONNECTOR A, FUSE (YUASA)
10
32112-041-008
CONNECTOR B, FUSE (YUASA)
524 ₽/шт
11
32136-141-000
No longer available
12
32161-399-000
BAND, WIRE
443 ₽/шт
13
35030-086-010
SWITCH KITCOMBIN ** NLA**
14
35100-086-047
SWITCH ASSYCOMBI
5 768 ₽/шт
16
38102-GB0-900
STAY COMP.HORN
17
38110-GA6-014
HORN COMP.
20
38301-086-714
Relais clignotant (mitsuba)
4 682 ₽/шт
21
38306-KJ6-740
SUSPENSION, WINKER RELAY
456 ₽/шт
23
38307-090-700
STAYWINKER RELAY
24
50373-040-020
BANDBATTERY
25
50381-040-010ZA
PLATE,BATTE*NH-1*
26
92101-060-120A
Bolt
50 ₽/шт
27
92301-060-160A
Bolt
55 ₽/шт
28
93402-060-1200
Bolt-washer
55 ₽/шт
29
93403-060-1600
Bolt-washer
63 ₽/шт
30
93500-060-120A
Болт
47 ₽/шт
32
94001-062-000S
Гайка
47 ₽/шт
33
94101-06000
Rondelle (M6)
39 ₽/шт
34
94201-30450
PIN, SPLIT, 3.0X45
52 ₽/шт
35
95014-61300
BAND A3, WIRE
126 ₽/шт
36
98200-10700
FUSE (7A)
63 ₽/шт
37
31500-437-752
La batterie (6N4-2A-4)
